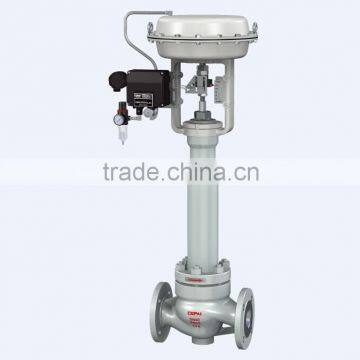

Pneumatic bellows valve
- FOB Shagnhai
- T/T L/C D/P D/A
You May Like
Product Details
Standard or Nonstandard | Other, Bellows seal | Structure | Control | |
Pressure | Medium Pressure | Power | Pneumatic | |
Material | Casting | Temperature of Media | Medium Temperature | |
Media | Gas | Place of Origin | Jiangsu, China | |
Model Number | HTSW | Brand Name | CEPAI & OEM | |
Application | General |
Product Description
Body type: | Globe control valve type |
Size: | DN15~DN250 (3/4" to 10") |
Pressure Class: | PN16,PN40,PN64 |
ANSI 150,ANSI300,ANSI600 | |
Characteristics: | Equal Percentage, Linear, quick open |
Body Materials: | ZG230~450, ZG1Cr18Ni9, WCB, LCB, CF8M, |
CF3M | |
Trim materials: | 304, 316, 304L, 316L |
Temp range: | -196°C to +566°C |
Connection: | Flanged, Socket welding, Butt welding |
Leakage: | Class IV (Metal seat, standard), Class V, |
Class VI (Soft seat, zero leakage) | |
Actuator: | Pneumatic diaphragm actuator, Piston |
Positioner: | High Performance Smart positioner (Explosive |
proof and HART Protocol are available) |
CEPAI guarantees delivery period and quality based on order requirements and totally comply by ISO9001 QMS, with advanced CAD, we can ensure quality of every single parts. Within delivery period, users can obtain our operation specifications and records in our factory of our material, semi-finished products and products test.
CEPAI Valve not only guarantees production qualities (based on excellent materials,subtle process and advanced technologies), but also emphasizes customer's requirements,and regards supplies of perfect services as our responsibilities. Besides pre-sale, in-sale and after-sale repairing and technical support,we also supply educations and trainings to our customers to make it easier for them to use our products,and reduce their use-cost, in order to realize optimal product value in the end.
CEPAI Valve is specialized in valves marked in CEPAI , including globe control valve, ball valve, eccentric rotary control valve, butterfly valve, pneumatic diaphragm actuator, PFA lined control valve and so on.Some of control valves are cooperated with OMC (Italy) in technology . Covering thousands of types and models , our products have adopted various kinds of driven operation ,such as manual , electric , hydraulic ,pneumatics , electric-hydraulic etc ,which can be designed and produced by the newest standard such as ANSI,API,DIN,BS, JIS,GB. And they have a wide application in petrifaction, metallurgy, chemical industrial, power station, paper making, medical, city building etc.
