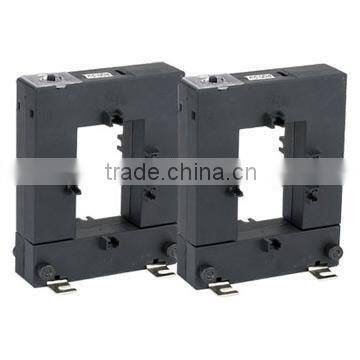

Split Core Current Transformer
- Shanghai/Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TUANJ | |
| Model Number | DP current transformers | Usage | Instrument | |
| Phase | Single | Coil Structure | Toroidal |
Product Description
Specifications
Features of TP CP DP(Split Core ) current transformers:Class: 0.5, 1.0, 3.0 Frequency: 50 / 60Hz
good quality and best pric
The DP series of current transformers have been especially designed to facilitate
their installation in new or already existing networks. Thanks to its split core
they may be installed without opening any cable or bus bar circuit.
The connection of conventional CTs usually requires the interruption of the primary
side circuit to pass cables or bus bars through the transformer core or to connect
such cables to the primary terminals. The DP series transformers core may
be easily opened and they may be installed and connected without any supply interruption, thus saving time and installation costs.
Features:
1) Small size and easy mounting
2) Wide inner window, allowing clamping of big cables or bus bars
3) Wide range of sizes to accommodate all existing installations
4) High accuracy and reliability
5) Split core current transformers DP series:
6) Primary current: 100A 5,000A
7) Secondary current: 5A, 1A
8) Standard approval: IEC44-1, BS7626
9) Max. voltage: 0.72 / 3kV
10) Frequency: 50 / 60Hz
11) Rated load: 1VA - 30VA
12) Class: 0.5, 1.0, 3.0
13) Short-time thermal current: Ith=100×In
14) Rated security coefficient: FS<5
