Home > Products > LV Current Transformers > CP current transformer

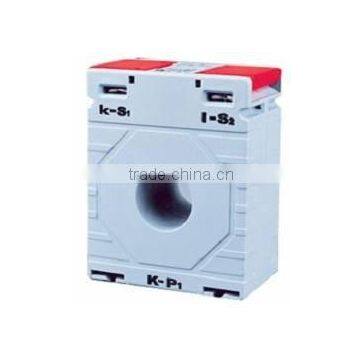

CP current transformer
- Ningbo/shanghai
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TUANJ | |
| Model Number | CP | Usage | Current | |
| Phase | Single | Coil Structure | Toroidal |
Product Description
Specifications
CP current transformer1)ISO 9001 factory
2)quality guaratee
3)current transformer
4)CE certified
Current transformer is a very useful device because it converts high ACcurrent to small easily manageable value.Current transformers consistof primary winding, secondary winding, magnetic core and insulatedbody. If current transformers have no bus bar, they are manufacturedwithout primary winding. Instead of this, it is possible to constituteprimary winding by passing conductor or busbar inside toroidal core oftransformer.
Current Coil
MODEL | RATAD CURRENT(A) | RATED BURDEN (VA) | ACCURACY CLASS | RATED VOLTAGE (V) | RATED FREQUENCY(HZ) | ||||
CP-62/20 | 30/5A-80/5A | 1.5-2.5 | 3.0-0.5 | 720 | 50/60 | ||||
CP-60/30 | 50/5A-300/5A | 1.5-5 | 1.0-0.5 | 720 | 50/60 | ||||
CP-60/40 | 200/5A-600/5A | 5-10 | 1.0-0.5 | 720 | 50/60 | ||||
CP-74/40 | 150/5A-800/5A | 2.5-20 | 1.0-0.5 | 720 | 50/60 | ||||
CP-74/50 | 250/5A-1000/5A | 5-20 | 1.0-0.5 | 720 | 50/60 | ||||
CP-86/60 | 250/5A-1200/5A | 5-30 | 1.0-0.5 | 720 | 50/60 | ||||
CP-104/80 | 600/5A-2000/5A | 5-45 | 1.0-0.5 | 720 | 50/60 | ||||
CP-140/100 | 1000/5A-3200/5A | 5-50 | 1.0-0.5 | 720 | 50/60 | ||||
CP-62/WS | 5/5A-80/5A | 5 | 0.5 | 720 | 50/60 | ||||
CP-62/WS:Security-FS-5 High voltage test:4Kveff.50HZ,1 min | |||||||||
Rated.current(A)primary/secondary | 30/5A-40/5A | 50/5A | 60/5A | 75/5A-80/5A | 100/5A | ||||
Accuracy class | 3 | 1.0 | 1.0 | 1.0 | 1.0 | ||||
Rated burden | 1 | 1.5 | 2.5 | 2.5 | 2.5 | ||||
