Home > Products > LV Current Transformers > MSQ Current Transformers

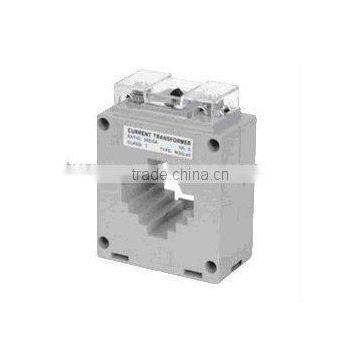

MSQ Current Transformers
- 5000 Piece / Pieces per Month
- Ningbo/shanghai
You May Like
Product Details
| Place of Origin | China | Brand Name | TUANJ | |
| Model Number | BH (LMK1-0.66) | Usage | Current | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Specifications
MSQ Current Transformers1) AC circuit
2) Rated voltage: below 0.66kV
3) Frequency: 50Hz
4) Tests, controls
The series of current transformer can be applied to test, control, display and record the running of the electrical equipment, and to protect the equipment against the damage, in the AC circuit with the rated voltage value below 660V and the frequency of 50 - 60Hz. The current transformer can be also applied to form a complete set of mine transformer. The products comply with VDE 0414,BS 7626 and IEC 44-1 standard.
| MSQ Current Transformers | ||||
| Technical characteristics current transformers | ||||
| Bar:80×30mm.or 100×10mm | ||||
| WINDOWSTYPE | condutor:φ60mm | |||
| Type | Rated current (A) | Rated power(VA) | Weight (kg) | |
| class:0.5 | class:1 | |||
| MSQ-100 | 1500/5 | 15 | 15 | 0,80 |
| 1600/5 | 15 | 15 | 0,80 | |
| 2000/5 | 15 | 15 | 0,94 | |
| 2250/5 | 15 | 15 | 0,98 | |
| 2500/5 | 15 | 15 | 1,10 | |
| 3000/5 | 15 | 15 | 1,16 | |
Type | Measuring range |
MSQ-40 | 100A/5 150A/5 200A/5 250A/5 300A/5 400A/5 500A/5 600A/5 |
MSQ-50 | 200A/5 250A/5 400A/5 |
500A/5 600A/5 800A/5 | |
MSQ-60 | 400A/5 500A/5 |
600A/5 800A/5 | |
1000A/5 1200A/5 | |
MSQ-80 | 600A/5 800A/5 1000A/5 |
1200A/5 1500A/5 1600A/5 | |
2000A/5 2500A/5 | |
MSQ-100 | 800A/5 1000A/5 |
1000A/5 1200A/5 1500A/5 | |
1600A/5 2000A/5 2500A/5 | |
3000A/5 | |
MSQ-125 | 2000A/5 2500A/5 3000A/5 |
4000A/5 5000A/5 |
