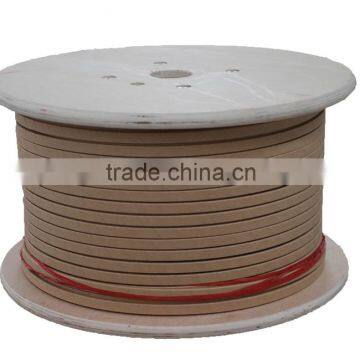

Square Kraft Paper Covered Aluminium Wire China Supplier Used for Electric Motor

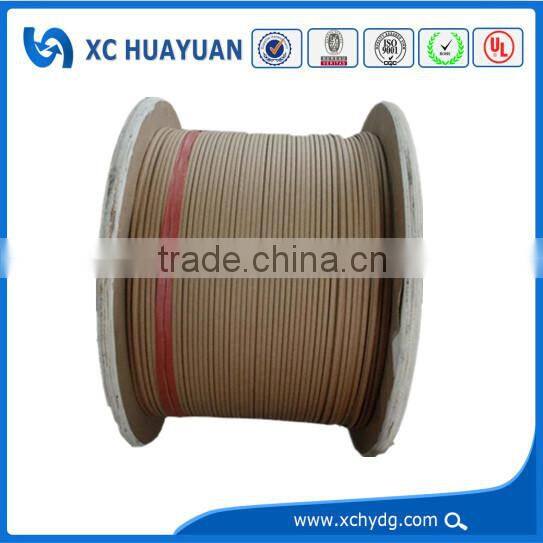

Square kraft paper covered aluminium wire alibaba china supplier used for electric motor

Product detail picture

1. Specifications of   Square kraft paper covered aluminium wire

 Diameter: Round wire: 1.0-8.0mm

 Flat wire: Thickness(a): 0.8mm-5.0mm, Width(b): 2-16mm

 Standard: IEC, NEMA, GB

 Thermal Class: 130/155/180/200/220 ºC

 Certification: UL Approved, ROHS Authentication, ISO9001

2. Feature  of   Square kraft paper covered aluminium wire

a) High temperature resistance

b) Chemical corrosion resistance

c) Transformer oil resistance

d) Low temperature resistance

e) Radiation resistance

f) High breakdown voltage

g) Good mechanical properties

3. Applications of   Square kraft paper covered aluminium wire   :  This kind of  Polyester or polyestermide covered with polyamide-imide enameled round and flat aluminium wire class 180/200/220 can be used to make winding wire demanding light material, high electricity conductivity and good heat dispersing performance, especially for the winding wire for transferring high frequency signal, such household appliances as degaussing coil, high frequency transformer, common transformer and small electric motor

    wire drawing                                bare wire                                             payed off

     ultrasonic   cleaner                          softening oven                             cooling

     enamelling                                    take-up                             finished products

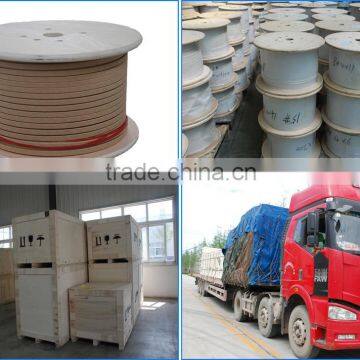

5. Packing about   Square kraft paper covered aluminium wire

    Spool: PT15, PT25, PT30, PT60, PT200 or much big Plywood Wooden Spool

     Film: High quality water-proof heat shrinkage film covered wire spools

     Packing: Plastic spool loading in custom-made export carton then pack in Plywood Cases, at last bind it with Steel Strip

     Your can choose natural packing or based on customers' requirement

6.Test reports of     Square kraft paper covered aluminium wire

1).We can supply the largest range of Enameled Round Aluminum Wire, with diameters from 1.0 to 8.0 millimeters.

2).We are BV approved professional manufacturer of aluminium wire. We process in high quality only.

3).The vanish we use is ELANTAS to gurantee the quality.

4).We have passed the ISO 9001 (00112Q213049R1M/4100) and ROSH certification.

5).Some of our products are UL listed (OBMW2.E317671).

6) We can supply samples to test quality

Q1. Different thermal class wire, whether their price is the same ?

       Their price is different based on different thermal class, because the varnish is different.

Q2. Why we need our customer tell the insulation thickness ?

      Our customers can tell us the insulation thickness or the referance satndards, such as GB/IEC   /NEMA.

Q3. If I order today, how long it takes for the shipment ?

      If customized order will ship the goods within 5-15days also depend on the quantity.

Q4. Can u provide customized specifications ?

       Yes,we can. Round wire diameter 1.00-8.00mm Flat wire Thickness(a): Φ0.8mm-5.0mm, Width(b): Φ2-16mm .
