1.90mm*4.75mm Paper Lead Wire,copper Clad Aluminum Wire,nature Color
- Shanghai Tianjin Qingdao
- T/T PayPal
You May Like
-
1.50mm*8.00mm Paper Covered Aluminum Wire,screened Wire,transformer Winding Machine,mesas
-
3M Paper Aluminum Flat Wire With High Dielectric Strength
-
Telephone Paper Aluminum Wire,building Material Prices China,generators Cebu,ups
-
NOMEX Paper Aluminum Wire,low Voltage Cable,consumer Electronics, China Market
-
Nomex Paper Cover Covered Flat Aluminium Wire for Transformer
-
Flat Wire With Insulated Nomex for Oil Immersed Tranformer
Product Details
| Place of Origin | Henan, China | Brand Name | HUAYUAN | |
| Model Number | ZZD | Type | Insulated | |
| Application | Other, Transformer;Welding machine;Electric reactor | Conductor Material | Aluminum | |
| Conductor Type | Solid | Insulation Material | Other, kraft paper |
Product Description

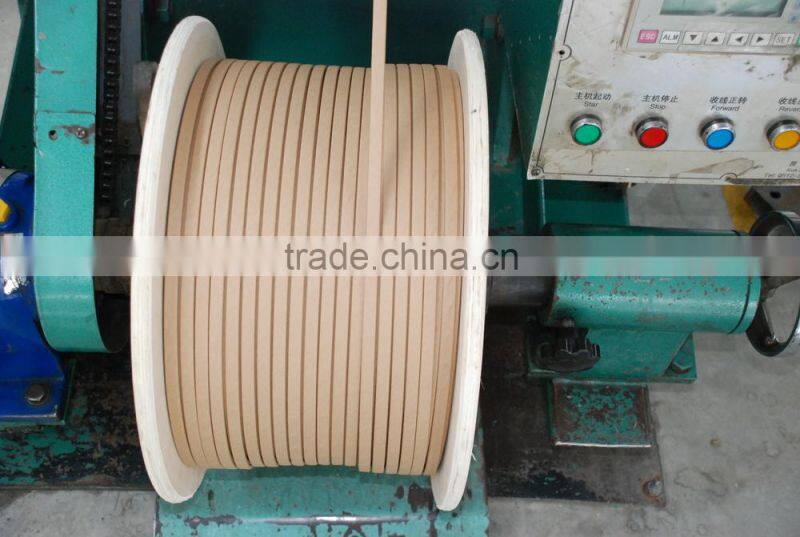

1.90mm*4.75mm paper lead wire,copper clad aluminum wire,nature color
TEST REPORT
Name | 1.90mm*4.75mm paper covered aluminum wire | |||
Specification | 1.90mm×4.75mm | |||
Standard | GB/T7673.3-2008 | |||
Test Item | Unit | Technical requirement | Test result | |
Appearance |
| Uniform formation around the conductor, there should be no shortage of tape layers should not have wrinkles and cracks and other defects | No defects
| |
Size | Thickness(a) | mm | ±0.03 | 1.89 |
Width(b) | mm | ±0.07 | 4.72 | |
Insulation thickness | mm | 0.405----0.45 ----0.48 | 0.46 | |
Electrical Resistance(20°C) | Ω.mm2/m | Aluminuminum≤0.02785 | 0.02746 | |
Wrapping overlap | mm | ≥2 | 2 | |
Elongation | % | ≥17% | 33% | |
Winding bend |
| Negotiated | No alice | |

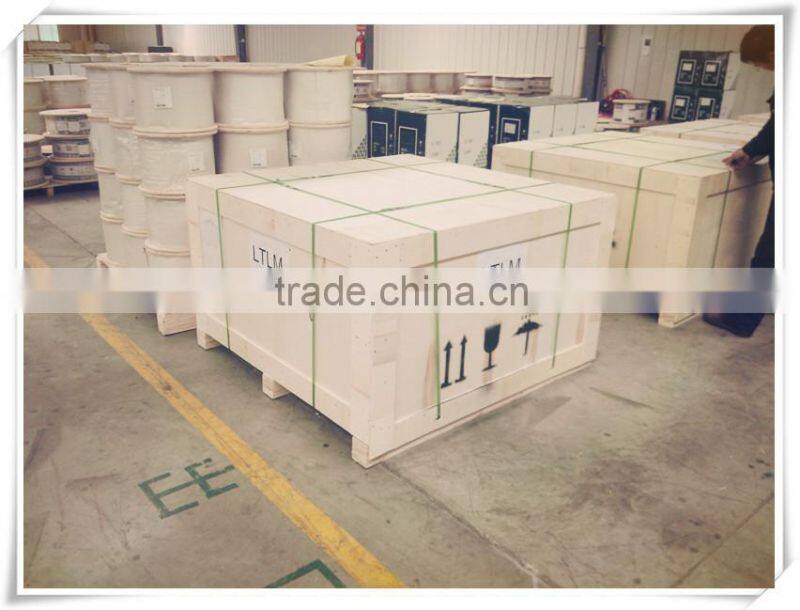

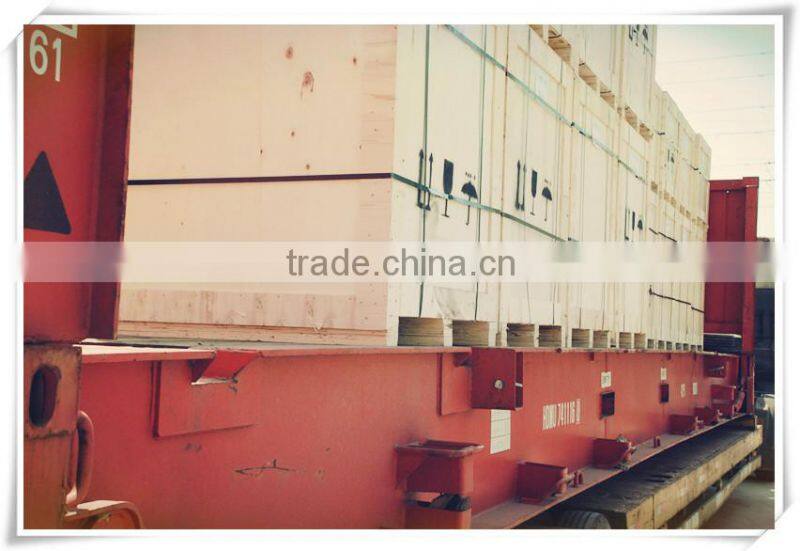

packing | Meet export standard | |||
Result | Up to standard | |||
Rectangular wire
a:0.80mm-5.00mm
b:2.00mm-16.00mm
Good feature
l High dielectric strength
l Good temperature strength
l Level wrapping

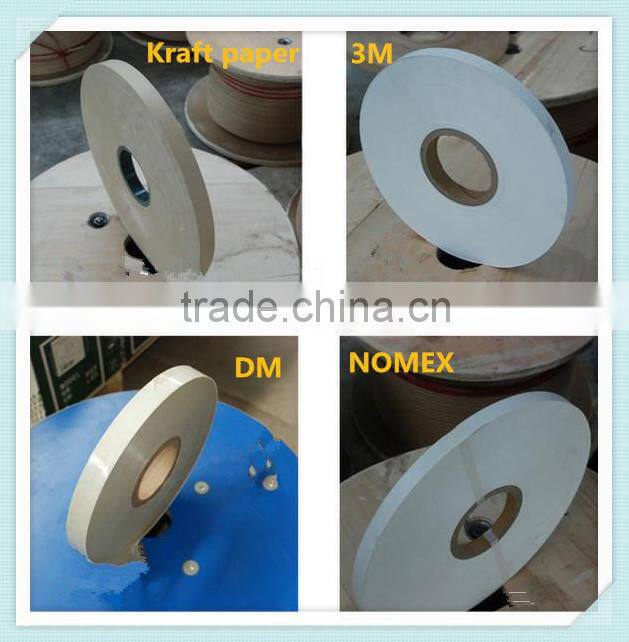

Material
Drawing or Squeezing bare wire confirm national standard. smooth surface, no defect
Standard
l GB/T5584-99
l NEMA-MW60-A
Application
l Transformer
l Welding machine
l Electric reactor
Certificate
UL BV IEC ROHS

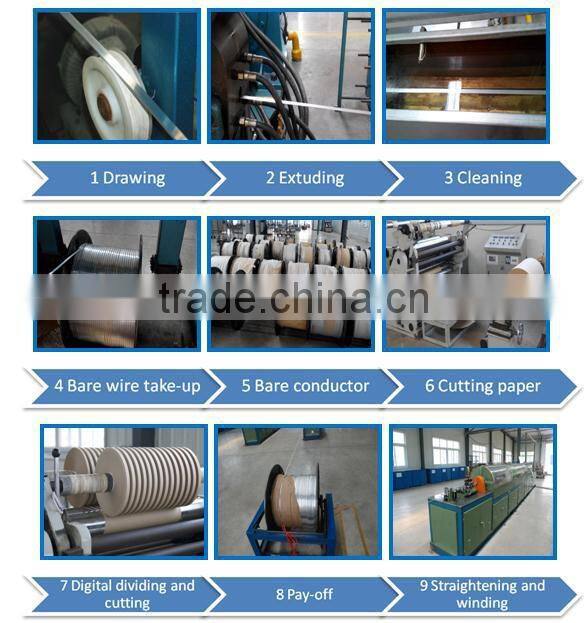

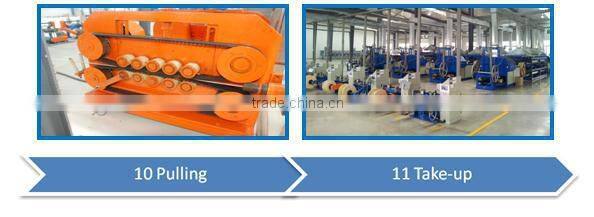

Production process
l We have strong technical strength and develop new products continuously.
l We can supply very professional solution to our client.
lWe issued test reports for every shipment.
sample arrangement
l Enameled wire sample is free for customers,and sample freight is paid by customers.
Customized product: We have two editor for GB Standard.The customers shoud pay the mold cost firstly. When the order carried out we will refund the mold cost.
l Sample is free,its shipping time is 3-5days.
Brief introduction
Located in Yanling County, Henan Province Of China,Huayuan was established in 1993,has developed a professional manufacturer of Magnet Wires in China,and our products conform the standards of IEC, NEMA ,ROHS,ISO9001,UL.
