Super 3.10mm*9.70mm Paper Wire,electricity,electrical Intruments,great Temperature Strength
- Shanghai Tianjin Qingdao
- T/T Credit Card PayPal
You May Like
-
3.00mm*10.00mm Paper Wire,electric Motor,us Cable Supply,aluminum Alloy
-
3.00mm*7.50mm Paper Covered Wire,cobre,electronic Products,exhaust
-
2.80mm*7.10mm Paper Telephone Wire,motor Winding Tools
-
2.65mm*6.70mm Paper Covered Aluminum Wire,national Standard,tetragon Wire,high Features
-
2.50mm*5.00mm Paper Covered Aluminum Wire, Express Turkey,truck Trailers,electric Material Sale
-
2.24mm*6.30mm Paper Tension Controller,alloy Wire,thermal Resistance
Product Details
| Place of Origin | Henan, China | Brand Name | HUAYUAN | |
| Model Number | ZZD | Type | Insulated | |
| Application | Other, Transformer;Welding machine;Electric reactor | Conductor Material | Aluminum | |
| Conductor Type | Solid | Insulation Material | Other, kraft paper |
Product Description

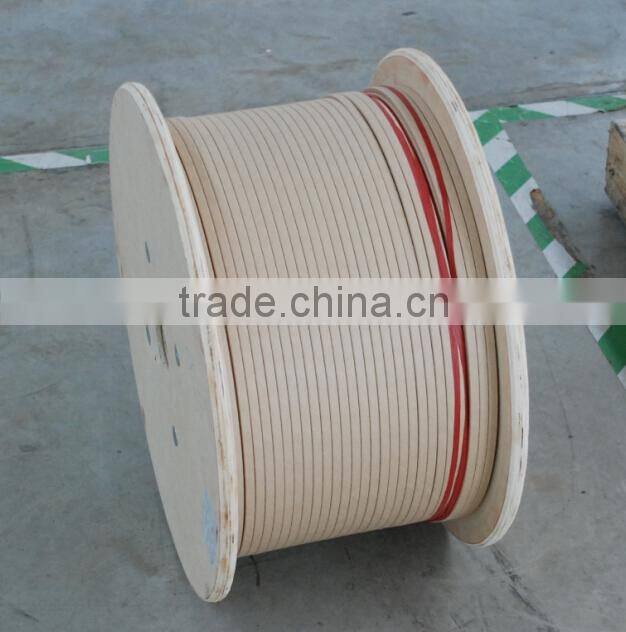

super 3.10mm*9.70mm paper wire,electricity,electrical intruments,great temperature strength
TEST REPORT
Name | super 3.10mm*9.70mm paper covered aluminum wire | |||
Specification | 3.10mm×9.70mm | |||
Standard | GB/T7673.3-2008 | |||
Test Item | Unit | Technical requirement | Test result | |
Appearance |
| Uniform formation around the conductor, there should be no shortage of tape layers should not have wrinkles and cracks and other defects | No defects
| |
Size | Thickness(a) | mm | ±0.03 | 3.10 |
Width(b) | mm | ±0.07 | 9.72 | |
Insulation thickness | mm | 0.252----0.28----0.308 | 0.28 | |
Electrical Resistance(20°C) | Ω.mm2/m | Aluminuminum≤0.02785 | 0.02771 | |
Wrapping overlap | mm | ≥2 | 2 | |
Elongation | % | ≥17% | 32% | |
Winding bend |
| Negotiated | No alice | |
packing | Meet export standard | |||
Result | Up to standard | |||
Rctangular wire
a:0.80mm-5.00mm
b:2.00mm-16.00mm
Good feature
l High dielectric strength
l Good temperature strength
l Level wrapping
Material
Drawing or Squeezing bare wire confirm national standard. smooth surface, no defect
Standard
l GB/T5584-99
l NEMA-MW60-A
Application
l Transformer
l Welding machine
l Electric reactor
Certificate
UL BV IEC ROHS
Production process
l We have strong technical strength and develop new products continuously.
l We can supply very professional solution to our client.
lWe issued test reports for every shipment.
sample arrangement
l Enameled wire sample is free for customers,and sample freight is paid by customers.
Customized product: We have two editor for GB Standard.The customers shoud pay the mold cost firstly. When the order carried out we will refund the mold cost.
l Sample is free,its shipping time is 3-5days.
Brief introduction
Located in Yanling County, Henan Province Of China,Huayuan was established in 1993,has developed a professional manufacturer of Magnet Wires in China,and our products conform the standards of IEC, NEMA ,ROHS,ISO9001,UL.
