Home > Products > 8. Platform and other Stacker > SINOLIFT CTJ400-850M Customrized Light-duty Manual Winch Platform Stacker
SINOLIFT CTJ400-850M Customrized Light-duty Manual Winch Platform Stacker
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SINOLIFT Customrized Platform Stacker | |
| Model Number | CTJ400-850M Customrized Platform Stacker | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

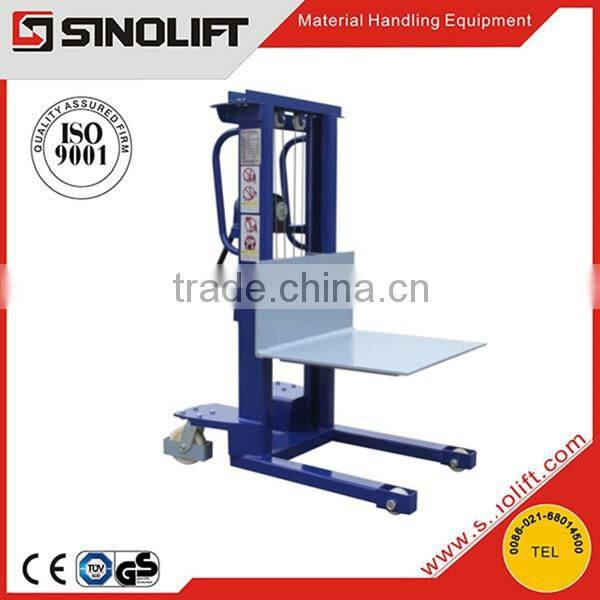

SINOLIFT CTJ400-850M Customrized Light-duty Manual Winch Platform Stacker
1) Features of Customrized Platform Stacker
The SINOLIFT CTJ400-850M light duty stacker is the ideal solution to countless handling problems which are regularly encountered in all areas of business.
The CTJ400 can be used either as a pallet or sack barrow, a low lift stacker capable of lifting to 850 mm
The truck is fitted with large diameter, Nylon wheels to make movement easy and light even over rough ground. In its upright position as a stacker, the CTJ400 is fitted with ball rollers which allow the machine to turn on the spot to allow access to the tightest spaces.
Lifting and lowering is carried out by a hand winch with clutch mechanism this method of operation means that there are no hydraulics, keeping the machines weight to a minimum and, with no possibility of leakage, there is no problem with use in offices.
Although a lightweight machine, weighing in at just 160 Kg the CTJ400 is no lightweight when it comes to performance having a lifting capacity of 500 Kg.
2) Specification Data of Customrized Platform Stacker
| Model | CTJ400-850M | |
| Capacity(kg) | kg | 400 |
| Load Center | mm | 400 |
| Lifting Speed | mm/sec | 0~140 |
| Lifting Height | mm | 850 |
| Platform Size | mm | 620x563 |
| Pallet Height | mm | 312 |
| Inserting Leg Outside Width | mm | 600 |
| Inserting Leg Length | mm | 700 |
| Inserting Leg Height | mm | <100 |
| Overall Size | mm | 960×620×1290 |
| Front Wheel | mm | Φ80 |
| Rear Wheel | mm | Φ150 |
| Steer Wire Rope | mm | Φ2.8~3.5 |

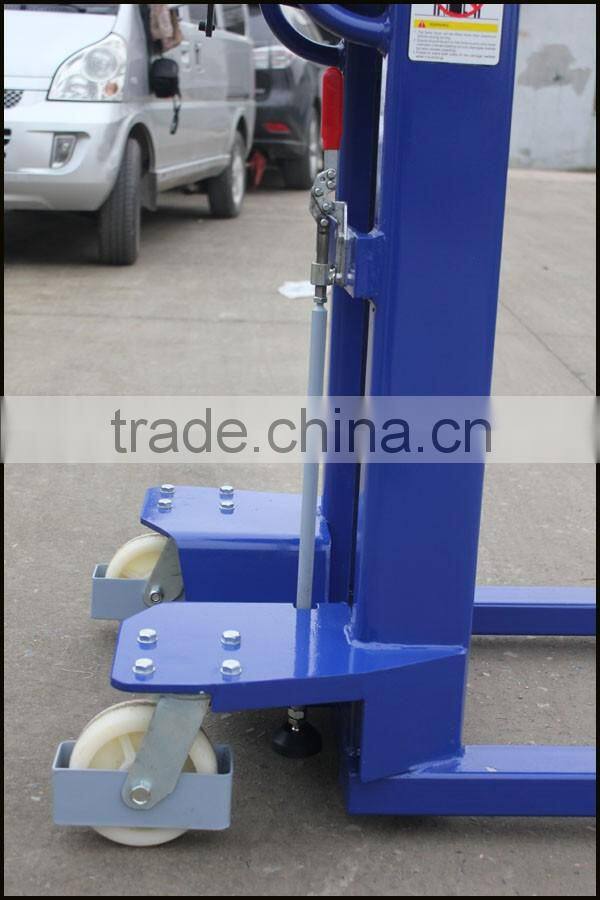

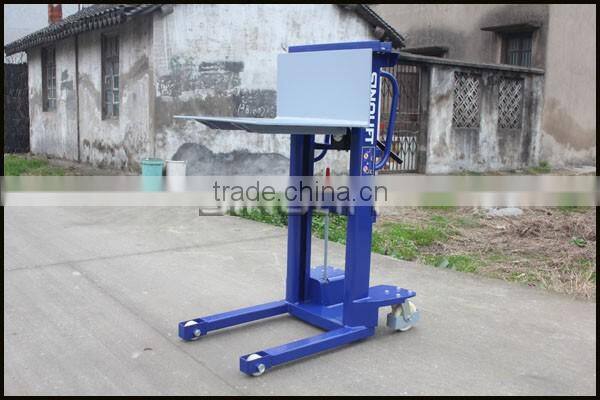

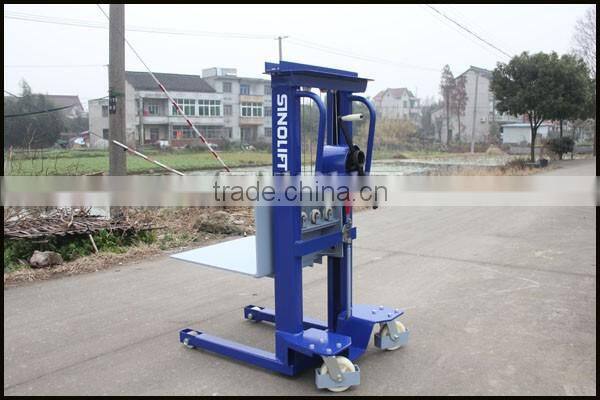

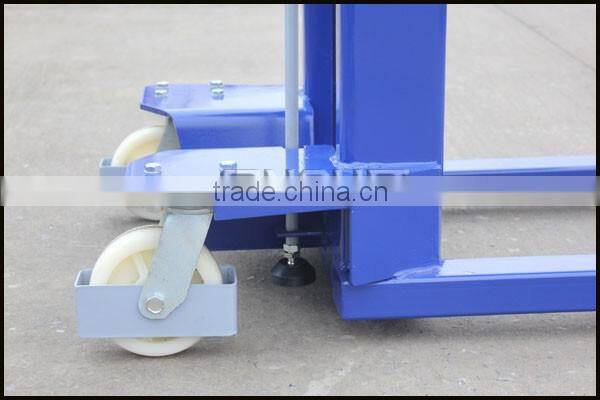

3) Photos of Customrized Platform Stacker

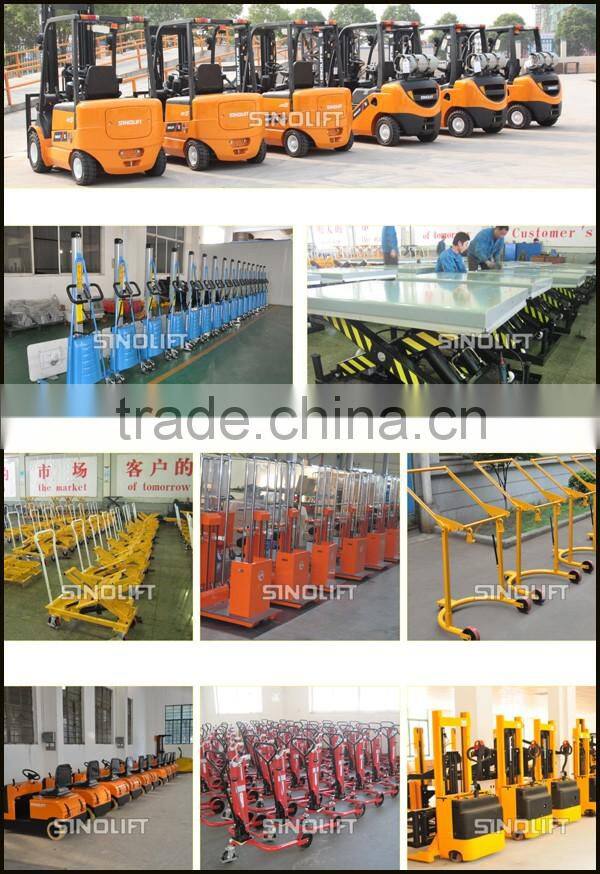

4) Workshop of Customrized Platform Stacker
5) Photos of Exhibition of Customrized Platform Stacker
6) Certificate of Customrized Platform Stacker
7)Terms and Service of Customrized Platform Stacker
1.Lead time | 3-4 weeks |
2.Packing | Standard export fumigated wooden pallet, foam rubbers |
3.Payment term | T/T payment in advance; L/C at sight. |
4.Lead term | FOB Shanghai or CFR/CIF |
5.Warranty period | 12 months |
6.Shipping method | by sea or air; by express. |
8) Warranty Policy and service program of Customrized Platform Stacker
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 24 months warranty on major components and 180 days on wearable items.
9) Why choose us? Customrized Platform Stacker
1- We're a material handling company, a pioneer in the industry in China, we've been leading the Chinese warehouse equipment industry since 2001. Sinolift products have been delivered to more than 80 countries.
2- We are unique, which means you will have a unique partner with unique trucks in the market, in long term. We are not assembling, 95% core parts are produced by ourselves, for example EPS, Hydraulic units, driving units are all produced by Sinolift, the only one in China. And Sinolift is keeping on investing 30% of its margin on R&D. At present, Sinolift is the only producer who delivers EPS as standard on most models.
3- Strict Quality Control: 48 hours 100% inspection of electronic parts test, 100% Quality Control before delivery, including Noisy, Driving, Lifting, and Welding inspection. Sinolift Quality has been accepted by world market, 13 world famous brand names are cooperating with Sinolift.
4- Full range products, High-Quality and economic models are both available from Sinolift, we have resources to help our partners to open the market easily.
5- Sinolift has a whole set of failure predication, repair, maintenance data which will reduce 60% of the dealer's after-sale service cost.
6- Universal core parts and design between different models. Structure of Sinolift products and 80% core parts are universal between different models, which will reduce greatly service parts stock and make the job of service people much easier.
7- Most parts are available, no matter assembly or small components, because it’s produced by Sinolift itself. You don’t need to replace any assembly when its components are damaged, which will help to save 90% of the replacements parts cost sometimes.
8- Fast. Fast delivery time, Fast service and communication. Within one hour Sinolift will respond and within 3 hours we will offer the solution. Less than 15 days standard delivery time for electric products.
9- We don’t ask more though we do much better! We offer reasonable price level!
10- We're honest and straight forward at work because that's the way we are in our homes, we keeps loyal to our partners!
10) Contact Us Customrized Platform Stacker
Contact Us
- Shanghai Sinolift Equipment Co., Ltd.
- Contact nameDavid Deng Chat Now
- Phone86-21-58003681
- AddressNo. 2471-2477, Dachuan Rd., Nanhui
