Home > Products > 9. Hydraulic Platform and Table Lift > CYT-P Series Hydraulic Lift Table
CYT-P Series Hydraulic Lift Table
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | sinolift | |
| Model Number | CYT-P Series | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Hydraulic | Power | Manual | |
| Rated Loading Capacity | 908kg | Min. Lifting Height | 915mm | |
| Max. Lifting Height | 1524mm | Table Size | 915x610mm | |
| Overall Dimensions | 1250x660x970mm | Weight | 140kg | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Hydraulic Lift Table1. Load Capacity: 908kg.
2. Max. Table Height: 915-1524mm.
3. Min. Table Height: 609-915mm.

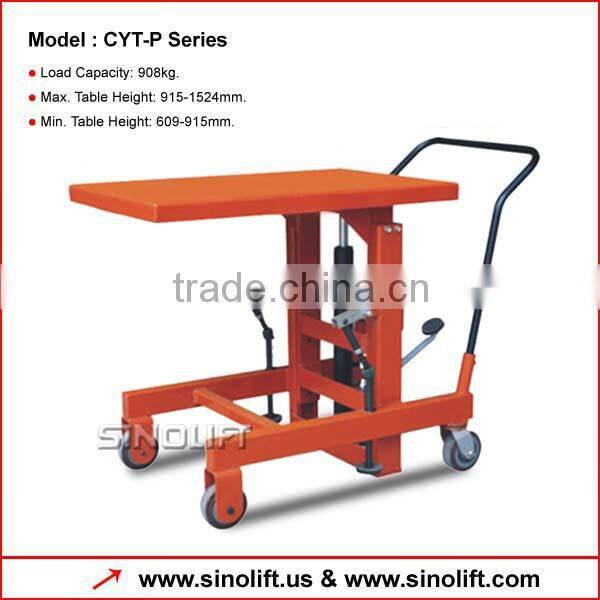

CYT-P Series Hydraulic Lift Table
1) Features
- Design for lifting, positioning and transporting heavy loads in the shop, warehouse and office.
- Foot Pump hydraulic ally raises platform.
- Double Heavy-duty cylinder.
Option:
1. All lifting table trucks have two kinds of lowering systems wire or nut.
2. Handle with plate protection.
3. Handle with rubber.
2) Specification Data
| Model | CYT36P | CYT48P | CYT60P | |
| Capacity Q | kg | 908 | 908 | 908 |
| Dimension of Table(LXW) | mm | 915x610 | 915x610 | 915x610 |
| Min.table height h2 | mm | 609 | 762 | 915 |
| Max.table height h1 | mm | 915 | 1220 | 1524 |
| Lifting speed | mm/s | ≥7 | ≥7 | ≥7 |
| Lowering speed | Adjustable | Adjustable | Adjustable | |
| Overall length | mm | 1250 | 1250 | 1250 |
| Overall width | mm | 660 | 660 | 660 |
| Overall height | mm | 970 | 970 | 970 |
| Outer dia.of the front wheel | mm | 125 | 125 | 125 |
| Outer dia.of the rear wheel | mm | 125 | 125 | 125 |
| Net weight | kg | 120 | 130 | 140 |
3) Photos
4) workshop:
5) terms and service:
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
