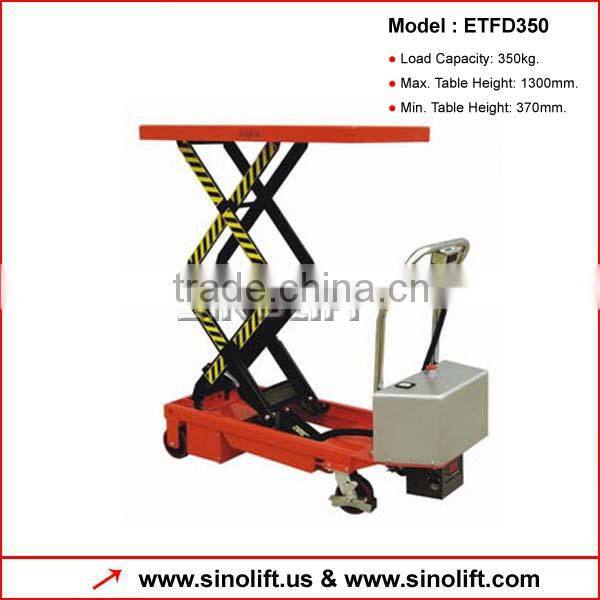

ETFD Mini Electric Table Lift
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SINOLIFT | |
| Model Number | ETFD | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Electric Motor | Power | Electric | |
| Rated Loading Capacity | 350kg | Min. Lifting Height | 370mm | |
| Max. Lifting Height | 1300mm | Table Size | 910x500x53mm | |
| Overall Dimensions | 1210x600x350mm | Weight | 142kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
ETFD Mini Electric Table Lift- Load Capacity: 350kg.
- Max. Table Height: 1300mm.
- Min. Table Height: 370mm.
TFD Mini Electric Table Lift
1) Features
- Fully sealed & maintenance-free battery
- Reliable brakes ensures the stability and safety
- Lightweight yet robustly constructed
- Conforms to CE Normals
2) Specification Data
| Model | ETFD35 | |
| Capacity | kg | 350 |
| Max.table height h2 | mm | 1300 |
| Min.table height h1 | mm | 370 |
| The dimension of table size(L*B) | mm | 910x500x53 |
| Caster Wheel d | mm | Φ125x40 |
| Overall length L1 | mm | 1210 |
| Height Of Handle From The Ground h3 | mm | 920 |
| Lifting speed with load/without load | mm/s | 90/110 |
| Lowering speed with load/without load | mm/s | 100/90 |
| Lifting Cycle(fully charged) | 100 | |
| Battery x 2 | 12v 24Ah | |
| Vertical Travel h4 | mm | 930 |
| Lifting Motor(DC24V KW) | 0.8 | |
| Charger(built-in)24V4A | 8.5Hr | |
| Approx Lifting Speed | s | 10 |
| Net Weight | kg | 142 |
3) Photos
4) workshop:
5) terms and service:
6) Warranty Policy and service program
SINOLIFT give our customer warranty in each forklifts, pallet trucks (pallet jacks), stackers, table lifts , access work platform and drum handling equipments which remind us we are always responsible for promotion our service.
Please check the warranty policy for the line of SINOLIFT material handling equipments from our sales department. Please note the warranty is for end user who purchase direct from SINOLIFT.
If your products from local distributor, please contact them. We provide full line after-sales service for our distributors. SINOLIFT believe local strategy is the best way for our distributors and local customers.
SINOLIFT offer all of handling equipments are reconditioned to our specifications, which come with a 12 months warranty on major components and 180 days on wearable items.
