Home > Products > Induction cooker Capacitors > AC induction cooker Capacitors(CBB90)

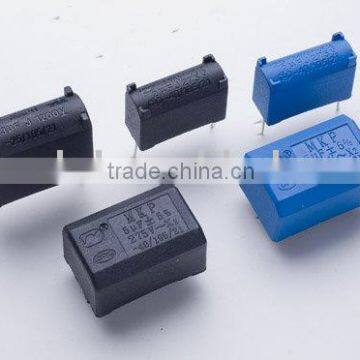

AC induction cooker Capacitors(CBB90)
- 500 Piece / Pieces per Month
- Shunde
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HD | |
| Model Number | CBB90 | Type | Polypropylene Film Capacitor | |
| Application | RF / Microwave | Package Type | Surface Mount | |
| Capacitance | 0.1-10uF | Rated Voltage | 1200V | |
| Operating Temperature | -25/+105/21 |
Product Description
Specifications
Film Induction cooker capacitors(MKP MKPH) capacitors are used in induction cooker and resisting electromagnetic wave interferenUses:
Film Induction cooker capacitors(MKP MKPH) capacitors are used in induction cooker and resisting electromagnetic wave interference filtering , mainly used in induction cookers.
Teatures:
*Applied in high-frequency electricity circuit and has no induction.
*Withstanding high-voltage and powerful electricity character.
*Sealing by fire-retardant plastic shell and fire-retardant epoxy resin.
*Low dissipation of medium under high-frequency condition.
Technical Specification
Type | Standards | Climatic Category | Rated voltage VAC | Rated capacitance μF | Test voltage VAC | Insulation Resistance | Dissipation Factor |
MKPH | Q/SHD0.463.006 -2002 | -25/85/21 -25/105/21 | 800 (1200VDC) 1000 (1600VDC) | 0.12~0.33 | 2.5Un/10S | ≥15000MΩ | ≤0.0005 (10KHz) |
MKP | GB/T14472 (IEC60384-14) | -40/85/21 | 275 (400VDC) | 1~5 | 2.5Un/10S | ≥5000S | ≤0.001 (1KHz) |
Capacitance Tolerance±5% or according to customers request.
Outline size:
MKPH High-frequency induction heating Capacitors:
NO | Rated voltageVAC | Rated capacitancesμF | Dimensionmm | |||||
L | B | H | L1 | Note | ||||
1 | 800 1200VDC | 0.20 | 37 | 13.5 | 24 | 31±1 | The dimension can produce according to customers request | |
2 | 0.24 | 14 | 25 | |||||
3 | 0.27 | |||||||
4 | 0.30 | 38 | 15 | |||||
5 | 0.33 | |||||||
6 | 1000 1600VDC | 012 | 37 | 14 | ||||
7 | 0.15 | |||||||
8 | 020 | 38 | 15 | |||||
9 | 0.25 | 17 | 28 | |||||
10 | 0.24 | |||||||
11 | 0.27 | |||||||
MKP Resisting electromagnetic wave interference filtering capacitor:
|
|
|
| |||||
|
|
|
|
| ||||
NO | Rated voltage VAC | Rated capacitance μF | Dimensionsmm | |||||
L | B | H | L1 | Note | ||||
1 | 275 400VDC | 1.0 | 32 | 11 | 22 | 26.5±1 | The dimension can produce according to customers request | |
2 | 2.0 | 13 | 23 | |||||
3 | 3.3 | 38 | 15 | 25 | 31±1 | |||
4 | 4.0 | |||||||
5 | 4.7 | 37 | 17 | 28 | ||||
6 | 5.0 | 37 | 26 | 21 | ||||
7 | 5.0 | 38 | 17 | 28 | ||||
