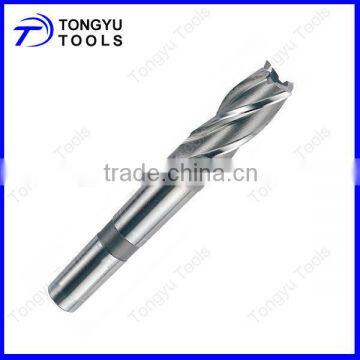

DIN845 HSS End Mills With Morse Taper Shank
US$ 1.2 - 80
/ Piece
500 Pieces(Min. Order)
- Shanghai/Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TONGYU | |
| Model Number | TY10-18.2.1.1 | Material | High Speed Steel | |
| Diameter | 10MM-63MM | Type | End Mill | |
| Coating | Other, Tin-coated/bright finishing |
Product Description
Specifications
Morse taper shank end mill1.Guaranteed hss raw material
2.With comparative price advantage
3.Customization is available
DIN845 HSS End Mills With Morse Taper Shank
Specification:
| 1. Standard: | DIN845-N (GOST standard is also available) |
| 2. Material: | HSS 4341(W4Mo3Cr4V), 6542(W6Mo5Cr4V2) |
| M35 (W6Mo5Cr4V2Co5), M42 (W6Mo5Cr4V2Co8) | |
| 3. Hardness: | HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67 HSS M42:HRC 67-68 |
4. Surface finishing: | Bright finishing;Tin-coated; or customization |
| 5.Application: | Suitable for milling lateral face, end face, flute and step face. Also for two vertical planes and form plane. To passing core end edgeend mill, also used for drilling and insertion milling. In structural steels with resistance 1200 N/mm². |
6. Size:
| D (MM) | L (MM) | l (MM) | Z | KM |
| 10 | 92 | 22 | 4 | 1 |
| 11 | 92 | 22 | 4 | 1 |
| 12 | 96 | 22 | 4 | 1 |
| 14 | 111 | 26 | 4 | 2 |
| 16 | 117 | 32 | 4 | 2 |
| 18 | 117 | 32 | 4 | 2 |
| 20 | 123 | 38 | 4 | 2 |
| 22 | 123 | 38 | 4 | 3 |
| 25 | 147 | 45 | 4 | 3 |
| 28 | 147 | 45 | 4 | 3 |
| 30 | 155 | 53 | 6 | 3 |
| 32 | 178 | 53 | 6 | 3 |
| 36 | 178 | 53 | 6 | 4 |
| 40 | 188 | 63 | 6 | 4 |
| 45 | 188 | 63 | 6 | 4 |
| 50 | 233 | 75 | 6 | 5 |
| 56 | 233 | 75 | 6 | 5 |
| 63 | 248 | 90 | 6 | 5 |
In addition, the quality of HSS tools are basically decided by HSS raw material and heat treatment.
We can keep a strict control of these procedure.
Package:
Exporting outer carton, then in pallet.
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
