DIN844 Standard HSS End Mill Cutter
USD $0.9 - $60
/ Piece
1 Piece(Min.Order)
- Shanghai/Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TONGYU | |
| Model Number | TY10-2-End mill cutter | Material | Other, High Speed Steel, HSS4341/HSS6542/HSS-CO5 | |
| Diameter | 2MM-50MM | Type | End Mill | |
| Coating | Other, Tin-coated/bright finishing | Overall Length | 51-177MM |
Product Description
Specifications
End mill cutter1.Guaranteed hss raw material
2.With comparative price advantage
3.Customization is available

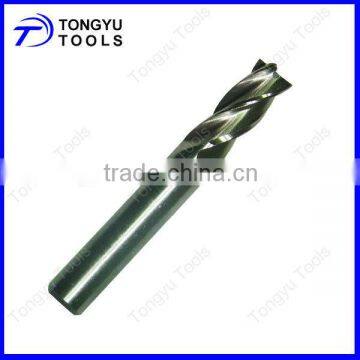

DIN844 Standard HSS End Mill Cutter
Specification:
| 1. Standard: | DIN844-N |
| 2. Material: | HSS 4341(W4Mo3Cr4V), 6542(W6Mo5Cr4V2, P6M5) |
| M35 (W6Mo5Cr4V2Co5, P6M5K5), M42 (W6Mo5Cr4V2Co8) | |
| 3. Hardness: | HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67 HSS M42:HRC 67-68 |
4. Surface finishing: | Bright finishing;Tin-coated; or customization |
| 5.Application: | HSS end mill cutter is used for milling & cutting for ordinary steel, alloy steel, die steel and cast iron etc. Suitable for milling lateral face, end face, flute and step face. Also for two vertical planes and form plane. To passing core end edge end mill, also used for drilling and insertion milling. |
6. Size:
| D | d2 | l | L | Z |
| MM | MM | MM | MM | |
| 2 | 6 | 7 | 51 | 4 |
| 3 | 6 | 8 | 52 | 4 |
| 4 | 6 | 11 | 55 | 4 |
| 5 | 6 | 13 | 57 | 4 |
| 6 | 6 | 13 | 57 | 4 |
| 7 | 10 | 16 | 66 | 4 |
| 8 | 10 | 19 | 69 | 4 |
| 9 | 10 | 19 | 69 | 4 |
| 10 | 10 | 22 | 72 | 4 |
| 11 | 12 | 22 | 79 | 4 |
| 12 | 12 | 26 | 83 | 4 |
| 13 | 12 | 26 | 83 | 4 |
| 14 | 12 | 26 | 83 | 4 |
| 15 | 12 | 26 | 83 | 4 |
| 16 | 16 | 32 | 92 | 4 |
| 17 | 16 | 32 | 92 | 4 |
| 18 | 16 | 32 | 92 | 4 |
| 19 | 16 | 32 | 92 | 4 |
| 20 | 20 | 38 | 104 | 4 |
| 21 | 20 | 38 | 104 | 4 |
| 22 | 20 | 38 | 104 | 4 |
| 23 | 20 | 38 | 104 | 4 |
| 24 | 25 | 45 | 121 | 4 |
| 25 | 25 | 45 | 121 | 4 |
| 26 | 25 | 45 | 121 | 4 |
| 27 | 25 | 45 | 121 | 4 |
| 28 | 25 | 45 | 121 | 4 |
| 29 | 25 | 45 | 121 | 4 |
| 30 | 25 | 45 | 121 | 4 |
| 32 | 32 | 53 | 133 | 4 |
| 36 | 32 | 53 | 133 | 4 |
| 40 | 40 | 63 | 155 | 4 |
| 45 | 40 | 63 | 155 | 4 |
| 50 | 50 | 75 | 177 | 4 |
In addition, the quality of HSS end mill cutters are basically decided by HSS raw material and heat treatment.
We can keep a strict control of these procedure.
Package:
Exporting outer carton, then in pallet.
Other kinds of end mill cutter are also available:
Pls. contact us freely for more information about the HSS end mill cutter , I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
