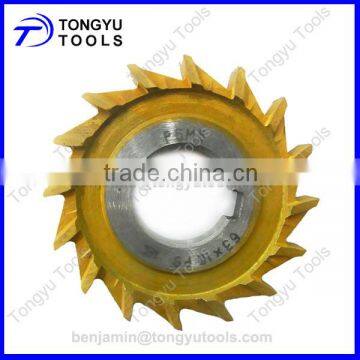

Tin Coated Side and Face Milling Cutter
- 50000 Piece / Pieces per Month
- Shanghai Ningbo
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TONGYU | |
| Model Number | TY11-10-side & face milling cutter | Material | Other, High Speed Steel, HSS6542 ( M2, P6M5) | |
| Diameter | 50mm~250mm | Type | End Mill | |
| Coating | AlTiN | Overall Length | 250mm |
Product Description
Specifications
Side and face milling cutter1.Standard gear
2.Side & face straight milling cutter
3.Straight teeth design
HSS Side and Face Milling Cutter
1.Standard gear
2.Side & face straight milling cutter
3.Straight teeth design
4.P6M5 material
Introduction:
Side and Face milling cutter can handle long, deep, open slot in a more efficient manner, and provide the best stability and productivity for this type of milling. They can also be built into a "gang" to machine more than once surface in the same plane at the same time.
It is mainly used for milling fixed size grooves, also can mill groove, steps side face.
Features:
| Product name | HSS side and face milling cutter |
| Material | P6M5 |
| Tip Type | Straight HSS Tip |
| Size | 50~250mm |
| Surface Treatment | Sand-blasted |
| MOQ | 10 |
| Application: | Mainly used for milling fixed size. |
Specification:
| Diameter | Arbor Size (H7) | Thickness ( L ) | Z |
| 50 | 16 | 4 | 14 |
| 50 | 16 | 5 | 14 |
| 50 | 16 | 6 | 14 |
| 50 | 16 | 8 | 14 |
| 50 | 16 | 10 | 14 |
| 63 | 22 | 4 | 16 |
| 63 | 22 | 5 | 16 |
| 63 | 22 | 6 | 16 |
| 63 | 22 | 8 | 16 |
| 63 | 22 | 10 | 16 |
| 63 | 22 | 12 | 16 |
| 63 | 22 | 14 | 16 |
| 63 | 22 | 16 | 16 |
| 63 | 22 | 18 | 16 |
| 80 | 22 | 5 | 18 |
| 80 | 22 | 6 | 18 |
| 80 | 22 | 8 | 18 |
| 80 | 22 | 10 | 18 |
| 80 | 22 | 12 | 18 |
| 80 | 22 | 14 | 18 |
| 80 | 22 | 16 | 18 |
| 80 | 22 | 18 | 18 |
| 80 | 22 | 20 | 18 |
| 80 | 27 | 5 | 18 |
| 80 | 27 | 6 | 18 |
| 80 | 27 | 8 | 18 |
| 80 | 27 | 10 | 18 |
| 80 | 27 | 12 | 18 |
| 80 | 27 | 14 | 18 |
| 80 | 27 | 16 | 18 |
| 80 | 27 | 18 | 18 |
| 80 | 27 | 20 | 18 |
| 100 | 27 | 6 | 20 |
| 100 | 27 | 8 | 20 |
| 100 | 27 | 10 | 20 |
| 100 | 27 | 12 | 20 |
| 100 | 27 | 14 | 20 |
| 100 | 27 | 16 | 20 |
| 100 | 27 | 18 | 20 |
| 100 | 27 | 20 | 20 |
Other sizes are also available for hss side & face milling cutters.
