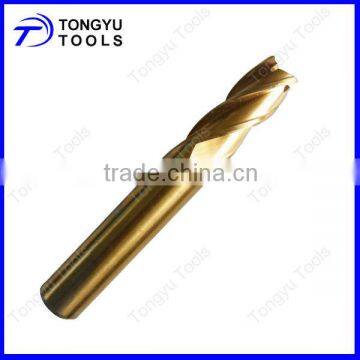

Straight Shank HSS end mill
- Shanghai/Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TONGYU | |
| Model Number | TY10-18.2.1.1 | Material | High Speed Steel | |
| Diameter | 2MM-50MM | Type | End Mill | |
| Coating | Other, Tin-coated/bright finishing |
Product Description
Specifications
Straight Shank HSS end mill1.Guaranteed hss raw material
2.With comparative price advantage
3.Customization is available
Introduction: We are a professional supplier in supplying different kinds of end mills. Such as DIN standard: DIN844 straight shank end mills, DIN845 taper shank end mills, long series end mills, extra long end mills;
Russian standard: GOST 17025-71, GOST 17026-71, GOST 9140-78.
Straight Shank HSS end mill
Specification:
| 1. Standard: | DIN844-N |
| 2. Material: | HSS 4341(W4Mo3Cr4V), 6542(W6Mo5Cr4V2, P6M5, M2) |
| M35 (W6Mo5Cr4V2Co5, P6M5K5) | |
| 3. Hardness: | HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67 |
4. Surface finishing: | Bright finishing;Tin-coated; or customization |
| 5.Application: | It is used for milling & cutting for ordinary steel, alloy steel, die steel and cast iron etc. Suitable for milling lateral face, end face, flute and step face. Also for two vertical planes and form plane. To passing core end edge end mill, also used for drilling and insertion milling. |
6. Size:
| D | d2 | l | L | Z |
| MM | MM | MM | MM | |
| 2 | 6 | 7 | 51 | 4 |
| 3 | 6 | 8 | 52 | 4 |
| 4 | 6 | 11 | 55 | 4 |
| 5 | 6 | 13 | 57 | 4 |
| 6 | 6 | 13 | 57 | 4 |
| 7 | 10 | 16 | 66 | 4 |
| 8 | 10 | 19 | 69 | 4 |
| 9 | 10 | 19 | 69 | 4 |
| 10 | 10 | 22 | 72 | 4 |
| 11 | 12 | 22 | 79 | 4 |
| 12 | 12 | 26 | 83 | 4 |
| 13 | 12 | 26 | 83 | 4 |
| 14 | 12 | 26 | 83 | 4 |
| 15 | 12 | 26 | 83 | 4 |
| 16 | 16 | 32 | 92 | 4 |
| 17 | 16 | 32 | 92 | 4 |
| 18 | 16 | 32 | 92 | 4 |
| 19 | 16 | 32 | 92 | 4 |
| 20 | 20 | 38 | 104 | 4 |
| 21 | 20 | 38 | 104 | 4 |
| 22 | 20 | 38 | 104 | 4 |
| 23 | 20 | 38 | 104 | 4 |
| 24 | 25 | 45 | 121 | 4 |
| 25 | 25 | 45 | 121 | 4 |
| 26 | 25 | 45 | 121 | 4 |
| 27 | 25 | 45 | 121 | 4 |
| 28 | 25 | 45 | 121 | 4 |
| 29 | 25 | 45 | 121 | 4 |
| 30 | 25 | 45 | 121 | 4 |
| 32 | 32 | 53 | 133 | 4 |
| 36 | 32 | 53 | 133 | 4 |
| 40 | 40 | 63 | 155 | 4 |
| 45 | 40 | 63 | 155 | 4 |
| 50 | 50 | 75 | 177 | 4 |
In addition, the quality of HSS tools are basically decided by HSS raw material and heat treatment.
We can keep a strict control of these procedure.
Package:
Exporting outer carton, then in pallet.
Want more kinds of end mills?
Just click our website.
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
