DIN842 HSS Single Angle Milling Cutter
- 10000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TONGYU | |
| Model Number | TY10-19.1.3.3 | Material | Other, High Speed Steel, High Speed Steel | |
| Diameter | 50mm-200mm | Type | Other, Face Mill, Fine teeth | |
| Coating | TiAIN |
Product Description
Specifications
1.Guaranteed hss raw material2.With comparative price advantage
3.Customization is available

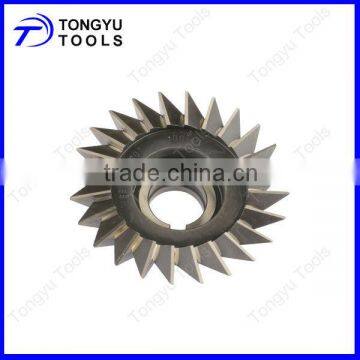

DIN842 HSS Single Angle Milling Cutter
Specification:
| 1. Standard: | DIN842 (single angle cutter) |
| 2. Material: | HSS 4341(W4Mo3Cr4V), 6542(W6Mo5Cr4V2) |
| M35 (W6Mo5Cr4V2Co5) | |
| 3. Hardness: | HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67 |
4. Surface finishing: | Bright finishing;TiN;TiAlN; or customization |
| 5.Application: | Used for milling Dovetails, Serrations, Angular Slots or Chamfers. Note: A 1mm flat may be added to maintain integrity of the cutting point on certain angle and diameter combinations. |
6. Size
| D | Angle | L | d | T |
40 | 45/50/.../85/90 | 8/10 | 13 | 18 |
| 50 | 45/50/.../85/90 | 13 | 16 | 20 |
| 63 | 18/ 25/30/40/45/.../90 | 6/7/8/9/16/20 | 22 | 20 |
| 80 | 18/ 25/30/40/.../85/90 | 10/12/13/15/22/24 | 27 | 22 |
| 100 | 18/22/25/30/40 | 14/16/18/20/22/25 | 32 | 24 |
Other sizes are also available according to your requirement. (OEM)
Material: the quality of HSS tools are basically decided by HSS raw material and heat treatment.
We can keep a strict control of these procedure.
Package: one piece packed in one paper box. Then in exporting outer carton, then in pallet.
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
