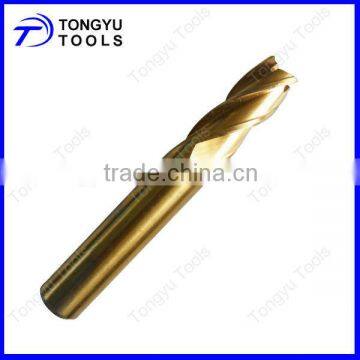

DIN844 TIN Coated Straight shank HSS end mill with 4 flutes
USD $0.5 - $60
/ Piece
500 Pieces(Min. Order)
- Shanghai Ningbo Guangzhou Shenzhen
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TONGYU | |
| Model Number | TY3 | Type | Other, End Mill | |
| Material | High Speed Steel | Use | Metal Drilling |
Product Description
Specifications
1.Guaranteed hss raw material2.With comparative price advantage
3.Customization is available
DIN844 TIN Coated Straight shank HSS end mill with 4 flutes
| 1. Standard: | DIN844-N |
| 2. Material: | HSS 4341(W4Mo3Cr4V), 6542(W6Mo5Cr4V2, P6M5) |
| M35 (W6Mo5Cr4V2Co5, P6M5K5), M42 (W6Mo5Cr4V2Co8) | |
| 3. Hardness: | HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67 HSS M42:HRC 67-68 |
4. Surface finishing: | Bright finishing;Tin-coated; or customization |
| 5.Application: | S It is used for milling & cutting for ordinary steel, alloy steel, die steel and cast iron etc. Suitable for milling lateral face, end face, flute and step face. Also for two vertical planes and form plane. To passing core end edge end mill, also used for drilling and insertion milling. |
6. Size:
| D | d2 | l | L | Z | D | d2 | l | L | Z |
| MM | MM | MM | MM | MM | MM | MM | MM | ||
| 2 | 6 | 7 | 51 | 4 | 19 | 16 | 32 | 92 | 4 |
| 3 | 6 | 8 | 52 | 4 | 20 | 20 | 38 | 104 | 4 |
| 4 | 6 | 11 | 55 | 4 | 21 | 20 | 38 | 104 | 4 |
| 5 | 6 | 13 | 57 | 4 | 22 | 20 | 38 | 104 | 4 |
| 6 | 6 | 13 | 57 | 4 | 23 | 20 | 38 | 104 | 4 |
| 7 | 10 | 16 | 66 | 4 | 24 | 25 | 45 | 121 | 4 |
| 8 | 10 | 19 | 69 | 4 | 25 | 25 | 45 | 121 | 4 |
| 9 | 10 | 19 | 69 | 4 | 26 | 25 | 45 | 121 | 4 |
| 10 | 10 | 22 | 72 | 4 | 27 | 25 | 45 | 121 | 4 |
| 11 | 12 | 22 | 79 | 4 | 28 | 25 | 45 | 121 | 4 |
| 12 | 12 | 26 | 83 | 4 | 29 | 25 | 45 | 121 | 4 |
| 13 | 12 | 26 | 83 | 4 | 30 | 25 | 45 | 121 | 4 |
| 14 | 12 | 26 | 83 | 4 | 32 | 32 | 53 | 133 | 4 |
| 15 | 12 | 26 | 83 | 4 | 36 | 32 | 53 | 133 | 4 |
| 16 | 16 | 32 | 92 | 4 | 40 | 40 | 63 | 155 | 4 |
| 17 | 16 | 32 | 92 | 4 | 45 | 40 | 63 | 155 | 4 |
| 18 | 16 | 32 | 92 | 4 | 50 | 50 | 75 | 177 | 4 |
In addition, the quality of HSS tools are basically decided by HSS raw material and heat treatment.
We can keep a strict control of these procedure.
TONGYU's philosophy is based on three principles: safety, efficiency and precision.
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
