HSS Fully Milled 4 Flutes End Mills
- Shanghai/Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TONGYU | |
| Model Number | TY1-end mills | Material | Other, High Speed Steel, High Speed Steel | |
| Diameter | 2MM-50MM | Type | End Mill | |
| Coating | TiN | Overall Length | 50mm |
Product Description
Specifications
End Mills1.Guaranteed HSS Cobalt material
2.Fully Milled
3,Proessioanal Heat Treatement

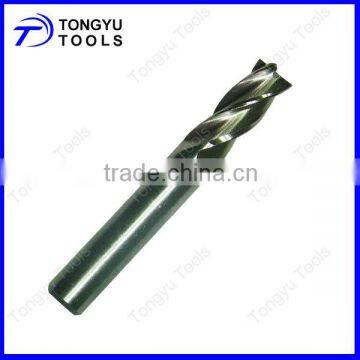

HSS Fully Milled 4 Flutes End Mills
1,Parallel shank or taper shank
2.Guaranteed hss cobalt raw material
3.Profesional Heat Treatement
3.Customization is available
Detailed Specification:
| 1. Standard: | DIN844 |
| 2. Material: | HSS 4341(W4Mo3Cr4V), 6542(W6Mo5Cr4V2, P6M5) |
| M35 (W6Mo5Cr4V2Co5, P6M5K5), M42 (W6Mo5Cr4V2Co8) | |
| 3. Hardness: | HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67 HSS M42:HRC 67-68 |
4. Surface finishing: | Bright finishing;Tin-coated; or customization |
| 5.Application: | S It is used for milling & cutting for ordinary steel, alloy steel, die steel and cast iron etc. Suitable for milling lateral face, end face, flute and step face. Also for two vertical planes and form plane. To passing core end edge end mill, also used for drilling and insertion milling. |
6. Size:
| D | d2 | l | L | Z |
| MM | MM | MM | MM | |
| 2 | 6 | 7 | 51 | 4 |
| 3 | 6 | 8 | 52 | 4 |
| 4 | 6 | 11 | 55 | 4 |
| 5 | 6 | 13 | 57 | 4 |
| 6 | 6 | 13 | 57 | 4 |
| 7 | 10 | 16 | 66 | 4 |
| 8 | 10 | 19 | 69 | 4 |
| 9 | 10 | 19 | 69 | 4 |
| 10 | 10 | 22 | 72 | 4 |
| 11 | 12 | 22 | 79 | 4 |
| 12 | 12 | 26 | 83 | 4 |
| 13 | 12 | 26 | 83 | 4 |
| 14 | 12 | 26 | 83 | 4 |
| 15 | 12 | 26 | 83 | 4 |
| 16 | 16 | 32 | 92 | 4 |
| 17 | 16 | 32 | 92 | 4 |
| 18 | 16 | 32 | 92 | 4 |
| 19 | 16 | 32 | 92 | 4 |
| 20 | 20 | 38 | 104 | 4 |
| 21 | 20 | 38 | 104 | 4 |
| 22 | 20 | 38 | 104 | 4 |
| 23 | 20 | 38 | 104 | 4 |
| 24 | 25 | 45 | 121 | 4 |
| 25 | 25 | 45 | 121 | 4 |
| 26 | 25 | 45 | 121 | 4 |
| 27 | 25 | 45 | 121 | 4 |
| 28 | 25 | 45 | 121 | 4 |
| 29 | 25 | 45 | 121 | 4 |
| 30 | 25 | 45 | 121 | 4 |
| 32 | 32 | 53 | 133 | 4 |
| 36 | 32 | 53 | 133 | 4 |
| 40 | 40 | 63 | 155 | 4 |
| 45 | 40 | 63 | 155 | 4 |
| 50 | 50 | 75 | 177 | 4 |
In addition, the quality of HSS tools are basically decided by HSS raw material and heat treatment.
We can keep a strict control of these procedure.
Package:
Exporting outer carton, then in pallet.
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
