Home > Products > Milling Cutters & Carbide Drill Bit > GOST-17025-71 Parallel Shank HSS End Milling Cutter

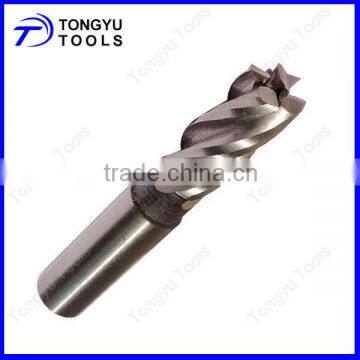

GOST-17025-71 Parallel Shank HSS End Milling Cutter
USD $0.9 - $60
/ Piece
500 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TONGYU | |
| Model Number | TY10-18.2.1.1 | Material | High Speed Steel | |
| Diameter | 2MM-50MM | Type | End Mill | |
| Coating | Other, Tin-coated/bright finishing |
Product Description
Specifications
Parallel shank end mill1.Guaranteed hss raw material
2.With comparative price advantage
3.Customization is available
Specification:
| 1. Standard: | GOST-17025-71, type 1 |
| 2. Material: | HSS 4341(W4Mo3Cr4V), 6542(W6Mo5Cr4V2, P6M5) |
| M35 (W6Mo5Cr4V2Co5, P6M5K5), M42 (W6Mo5Cr4V2Co8) | |
| 3. Hardness: | HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67 HSS M42:HRC 67-68 |
4. Surface finishing: | Bright finishing;Tin-coated; or customization |
| 5.Application: | S It is used for milling & cutting for ordinary steel, alloy steel, die steel and cast iron etc. Suitable for milling lateral face, end face, flute and step face. Also for two vertical planes and form plane. To passing core end edge end mill, also used for drilling and insertion milling. |
6. Size:
| D | d2 | l | L | Z |
| MM | MM | MM | MM | |
| 2 | 4 | 7 | 39 | 3 |
| 3 | 4 | 8 | 40 | 4 |
| 4 | 4 | 11 | 43 | 4 |
| 5 | 6 | 13 | 57 | 4 |
| 6 | 6 | 13 | 57 | 4 |
| 7 | 10 | 16 | 66 | 4 |
| 8 | 10 | 19 | 69 | 4 |
| 9 | 10 | 19 | 69 | 4 |
| 10 | 10 | 22 | 72 | 4 |
| 11 | 12 | 22 | 79 | 4 |
| 12 | 12 | 26 | 83 | 5 |
| 14 | 12 | 26 | 83 | 5 |
| 16 | 16 | 32 | 92 | 5 |
| 18 | 16 | 32 | 92 | 6 |
| 20 | 20 | 38 | 104 | 6 |
| 22 | 20 | 38 | 104 | 6 |
| 25 | 25 | 45 | 121 | 6 |
| 28 | 25 | 45 | 121 | 6 |
In addition, the quality of HSS tools are basically decided by HSS raw material and heat treatment.
We can keep a strict control of these procedure.
Package:
Exporting outer carton, then in pallet.
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
