DIN327 Parallel Shank HSS Slot Drill, slot drill
USD $0.4 - $60
/ Piece
500 Pieces(Min.Order)
- Shanghai/Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TONGYU | |
| Model Number | TY10-18.2.1.3 | Material | High Speed Steel | |
| Diameter | 2MM-50MM | Type | End Mill | |
| Coating | Other, Tin-coated/bright finishing |
Product Description
Specifications
Parallel shank slot drill1.Guaranteed hss raw material
2.With comparative price advantage
3.Customization is available

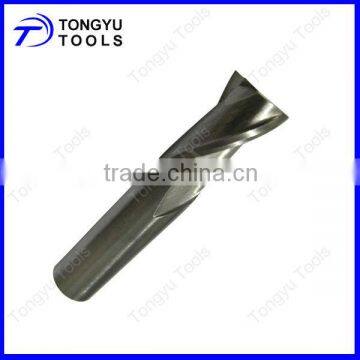

DIN327 Parallel Shank HSS Slot Drill
Specification:
| 1. Standard: | DIN327 |
| 2. Material: | HSS 4341(W4Mo3Cr4V), 6542(W6Mo5Cr4V2) |
| M35 (W6Mo5Cr4V2Co5), M42 (W6Mo5Cr4V2Co8) | |
| 3. Hardness: | HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67 HSS M42:HRC 67-68 |
4. Surface finishing: | Bright finihing/Tin-coated or customization |
| 5.Application: | Mainly used for machining round headed flat key seats, Also used to work open grooves, some are used for insertion milling, drilling. Suitable for milling grooves with width requirements. Spiral-teethed structure ensures smooth cutting. |
6. Size:
| D | d2 | L | l | Z |
| MM | MM | MM | MM | |
| 2 | 6 | 48 | 4 | 2 |
| 2.5 | 49 | 5 | ||
| 3 | 49 | 5 | ||
| 4 | 51 | 7 | ||
| 5 | 52 | 8 | ||
| 6 | 52 | 8 | ||
| 7 | 10 | 60 | 10 | |
| 8 | 61 | 11 | ||
| 10 | 63 | 13 | ||
| 12 | 12 | 73 | 16 | |
| 14 | 73 | 16 | ||
| 16 | 16 | 79 | 19 | |
| 18 | 79 | 19 | ||
| 20 | 20 | 88 | 22 | |
| 22 | 88 | 22 | ||
| 24 | 25 | 102 | 26 | |
| 25 | 102 | 26 | ||
| 28 | 102 | 26 | ||
| 32 | 32 | 112 | 32 | |
| 36 | 112 | 32 | ||
| 40 | 40 | 130 | 38 | |
| 45 | 130 | 38 | ||
| 50 | 50 | 147 | 45 |
In addition, the quality of HSS tools are basically decided by HSS raw material and heat treatment.
We can keep a strict control of these procedure.
Package:
Exporting outer carton, then in pallet.
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
