Home > Products > Milling Cutters & Carbide Drill Bit > DIN1837 HSS Metal Slitting Saw, circular slitting saw
DIN1837 HSS Metal Slitting Saw, circular slitting saw
US$ 1 - 80
/ Piece
100 Pieces(Min. Order)
- Shanghai/Ningbo
- T/T Credit Card
You May Like
-
GOST 9140-78 Parallel Shank HSS Slot Drill,keyway milling cutter
-
DIN327 Parallel Shank HSS Slot Drill, slot drill
-
GOST-17025-71 Parallel Shank HSS End Milling Cutter
-
DIN844 Tin-coated Straight shank HSS end mill, 4 flutes
-
HSS Fully Milled 4 Flutes End Mills
-
DIN1880 HSS Shell carbide tip end mill cutter
Product Details
| Place of Origin | Jiangsu, China | Brand Name | TONGYU | |
| Model Number | TY10-19.1.2.1 | Material | Other, High Speed Steel, High Speed Steel | |
| Diameter | 25mm-315mm | Type | Other, circular mill, Fine teeth/ corse teeth | |
| Coating | TiN |
Product Description
Specifications
1.Guaranteed hss raw material2.With comparative price advantage
3.Customization is available

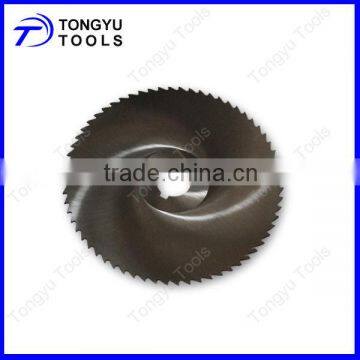

HSS Metal Slitting Saw
Specification:
| 1. Standard: | DIN1837 Fine teeth( corse teeth is also available if you are in demand) |
| 2. Material: | HSS 4341(W4Mo3Cr4V), 6542(W6Mo5Cr4V2) |
| M35 (W6Mo5Cr4V2Co5), M42 (W6Mo5Cr4V2Co8) | |
| 3. Hardness: | HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67 HSS M42:HRC 67-68 |
4. Surface finishing: | Bright finishing;Tin-coated; TiAlN; or customization |
| 5.Application: | Cutting or milling narrow and deep grooves on hard materials, structural steel, grey cast iron and medium hard nonferrous metals. Cutting by correctly chosen HSS slitting saw blades allows to obtain very high accuracy of cutting or grooving parts. |
6. Size
| Thickness | |||||||||||||||||
| D | d | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 1 | 1.2 | 1.5 | 1.6 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 |
| mm | mm | Number of teeth | |||||||||||||||
| 32 | 8 | 80 | 80 | 80 | 64 | 64 | 64 | 48 | 48 | 48 | 48 | 40 | 40 | 40 | 40 | 32 | 32 |
| 40 | 10 | 100 | 100 | 80 | 80 | 80 | 64 | 64 | 64 | 64 | 48 | 48 | 48 | 40 | 40 | 40 | 40 |
| 63 | 16 | 128 | 128 | 128 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 64 | 64 | 64 | 64 | 48 | 48 |
| 80 | 22 | 160 | 160 | 128 | 128 | 128 | 100 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 64 | 64 | 64 |
| 100 | 22 | 160 | 160 | 128 | 128 | 128 | 128 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 64 | ||
| 125 | 22 | 160 | 160 | 160 | 160 | 128 | 128 | 128 | 100 | 100 | 100 | 100 | 80 | 80 | |||
| 150 | 32 | 160 | 160 | 160 | 160 | 128 | 128 | 128 | 128 | 100 | 80 | 80 | |||||
| 160 | 32 | 160 | 160 | 160 | 160 | 128 | 128 | 128 | 128 | 100 | 100 | 100 | |||||
| 200 | 32 | 200 | 200 | 200 | 160 | 160 | 160 | 128 | 128 | 128 | 128 | 100 | |||||
| 250 | 32 | 200 | 200 | 200 | 160 | 160 | 160 | 160 | 128 | 128 | |||||||
| 315 | 40 | 200 | 200 | 200 | 200 | 160 | 160 | 160 | |||||||||
Other sizes are also available according to your requirement. (OEM)
Material: the quality of HSS tools are basically decided by HSS raw material and heat treatment.
We can keep a strict control of these procedure.
Package: one piece packed in one paper box. Then in exporting outer carton, then in pallet.
Pls. contact us freely for more information, I will reply you ASAP!
Hope you will enjoy a comfortable cooperation with us!
