Home > Products > RF connector > F-type Male Connectors RG58/RG59/RG6 Brass RF Connectors

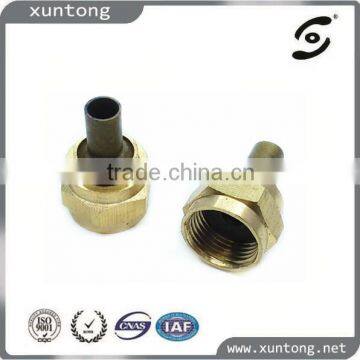

F-type Male Connectors RG58/RG59/RG6 Brass RF Connectors
USD $0.01 - $0.2
/ Piece
2000 Pieces(Min.Order)
- Shanghai . ningbo . shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
-
RG59 Coaxial Cable Crimp Type F-type Male Connector with big head
-
F-type Male connector with plastic part RG6 Waterproof connector
-
F-type Male Connectors RG59/RG6 Waterproof Connectors
-
F-type Male Connector with plastic part RG59 Waterproof Connector
-
F-type Felame Connector Double Straight Coaxial TV RF Adapter Connector
-
F-type Male Connector with plastic part Waterproof Connector
Product Details
| Place of Origin | Jiangsu, China | Brand Name | xuntong | |
| Model Number | F087 | Type | F | |
| Application | RF | Gender | Male |
Product Description
waterproof connector RG6 RG11 F electrical connector
Product Description
Product Spec
| Characteristic impedance | 75Ω | Temperature range | -65~+165°C | ||
| Frequency range | DC~1GHz | Working Voltage | ≤170V | ||
| Center conductor retention force | ≥0.2 N | Vibration | 100m/s2 (10~500Hz) | ||
| Conductor resistance | Center Conductor | ≤ 10 mΩ | |||
| Outer Conductor | ≤ 5 mΩ | ||||
| Durability | Mating cycles | ≥500 | |||
| Withstanding voltage | ≤500V rms | ||||
| Voltage Standing Wave Ratio | Straight | ≤1.20 | |||
| Right angle | ≤1.30 | ||||
| Parts Name | Material | Plating | |||
| Material And Plating | Body | Brass | Nickel plated | ||
| Pin contact | Brass | Gold or silver plated | |||
| Resilient contact | Tin bronze | Gold or silver plated | |||
| Insulators | PTFE | — | |||
| Gaskets | Silicon rubber | — | |||
| Crimp ferrules | Copper alloy | Nickel or gold plated | |||
| Applicable standard | IEC 60169-24 | ||||
