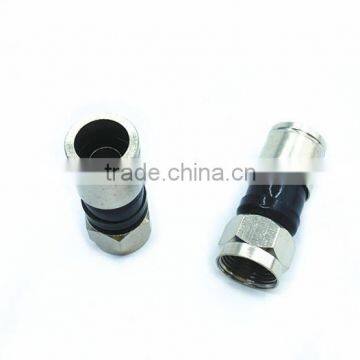

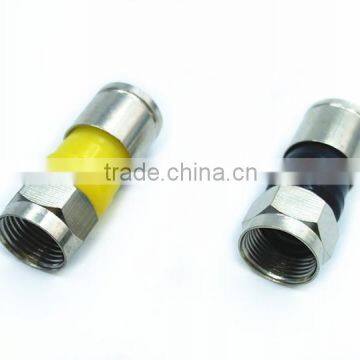

F Male Connector RG59/RG6 Electrical Compression Connectors Crimp-on Connectors
US$ 0.01 - 0.2
/ Piece
2000 Pieces(Min. Order)
- Shanghai . ningbo . shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
-
Adapter RG58/RG59/RG6 F Male Twist-on Connector Waterproof Connector
-
F Male Twist-On Coaxial Cable RF Connector Waterproof Electrical Connector Adapter RG6
-
Gold-plated Connector Reverse SMA Male
-
50 Ohm Brass rf n Connector n Male to Uhf Female
-
UHF Male Clamp Connector for RG58 Cable
-
High Quality 2 Pin Sma Connector Sma rf Coaxial Pcb Connector
Product Details
| Place of Origin | Jiangsu, China | Brand Name | xuntong | |
| Model Number | F087 | Type | F | |
| Application | RF | Gender | Male |
Product Description
waterproof connector RG6 RG11 F electrical connector
Product Description
Product Spec
| Characteristic impedance | 75Ω | Temperature range | -65~+165°C | ||
| Frequency range | DC~1GHz | Working Voltage | ≤170V | ||
| Center conductor retention force | ≥0.2 N | Vibration | 100m/s2 (10~500Hz) | ||
| Conductor resistance | Center Conductor | ≤ 10 mΩ | |||
| Outer Conductor | ≤ 5 mΩ | ||||
| Durability | Mating cycles | ≥500 | |||
| Withstanding voltage | ≤500V rms | ||||
| Voltage Standing Wave Ratio | Straight | ≤1.20 | |||
| Right angle | ≤1.30 | ||||
| Parts Name | Material | Plating | |||
| Material And Plating | Body | Brass | Nickel plated | ||
| Pin contact | Brass | Gold or silver plated | |||
| Resilient contact | Tin bronze | Gold or silver plated | |||
| Insulators | PTFE | — | |||
| Gaskets | Silicon rubber | — | |||
| Crimp ferrules | Copper alloy | Nickel or gold plated | |||
| Applicable standard | IEC 60169-24 | ||||
Production Process
Show Information

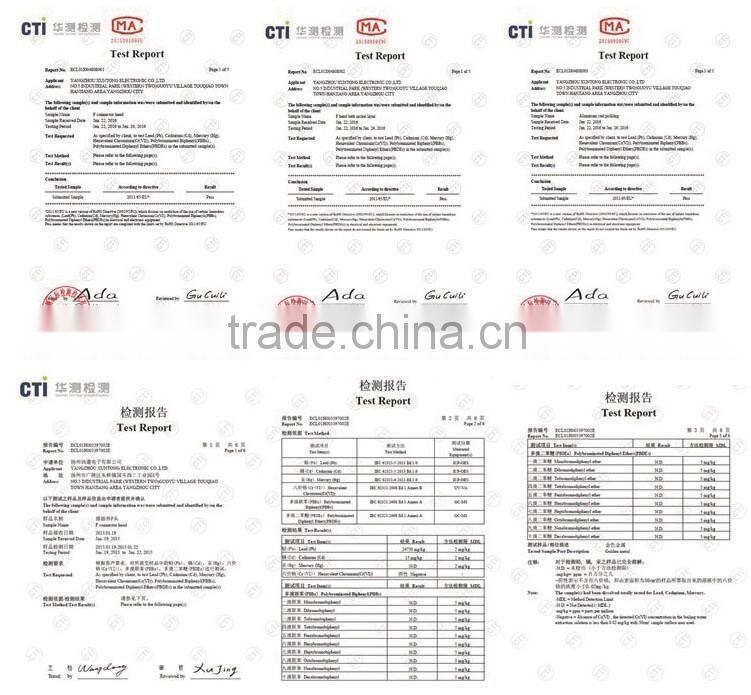

Certifications
Our Service
F A Q
Contact Us
- Yangzhou Xuntong Electronics Co., Ltd.
- Contact nameCarlos Guan Chat Now
- Phone86-514-87799748
- AddressHanjiang, Yangzhou, Jiangsu
