Home > Products > paper cone speaker > 2016 High End 50mm 3w 16 Ohm Speaker
2016 High End 50mm 3w 16 Ohm Speaker
US$ 0.1 - 0.5
/ Piece
100 Pieces(Min. Order)
- Xiamen Port for 16 ohm speaker
You May Like
Product Details
| Brand Name | HSY | Model Number | H50CP16-01 | |
| Type | Passive | Use | Computer, Home Theatre, Karaoke Player, Mobile Phone, Portable Audio Player, Stage | |
| Channels | 2 (2.0) | Special Feature | Mini, Portable, Wireless | |
| Place of Origin | Fujian, China |
Product Description
2016 high end 50mm 3w 16 ohm speaker ( H50CP16-01 )

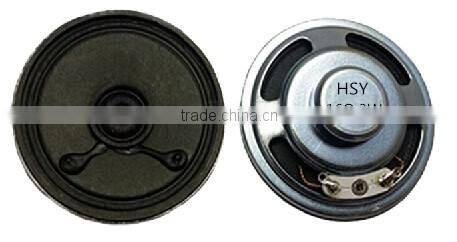

product image
Product Description
Support design and produce speakers according to customer's demand . Welcome inquiry .
| Speaker | 16 ohm speaker |
| Diameter | 50 x 12.5 (H)mm |
| Rated Power | 1.0 watt Max 2.0 watt |
| Nominal Impedance | 16 Ω±15% At 1000 Hz test |
| Lowest Resonance Frequency | 500Hz ± 20% |
| Output Sound Pressure Level | 88± 3db /1 W/1260 mv 10 cm Average at 600.800.1000.1200 HZ |
| Effective Frequency Band | fo -20k Hz Average SPL ±10 dB |
| Distortion | 5% Maxium at 1000 HZ 0.1W/0.1M |
| Pure tone Test | Must be normal at sine wave 6.32 V at 300HZ ~ 3KHz |
| Certificate | ROHS, CE, REACH, ISO9001 |

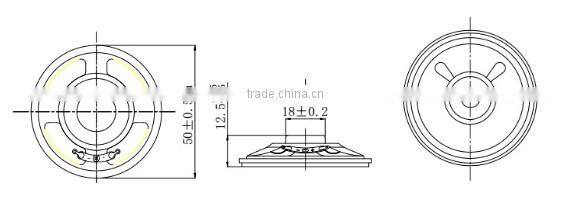

Product Drawing
