Product Details
| Brand Name | HSY | Model Number | H9292M08-01 | |
| Type | Passive | Use | Computer, Home Theatre, Karaoke Player, Mobile Phone, Portable Audio Player, Stage | |
| Channels | 2 (2.0) | Special Feature | Mini, Portable, Wireless | |
| Place of Origin | Fujian, China |
Product Description

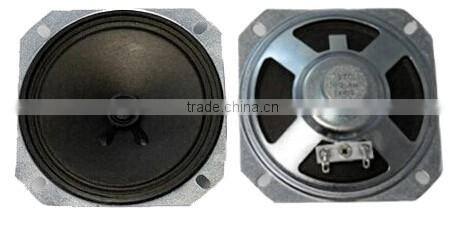

Fast delivery square shape 92mm 8 ohm 5w speaker ( H9292M08-01 )
Product Overview

Product Description
Support design and produce speakers according to customer's demand . Welcome inquiry .
| Speaker | 8 ohm 5w speaker |
| Diameter | 92x92x29(H)MM |
| Rated Power | 5.0 watt Max 6.0 watt |
| Nominal Impedance | 8 0hm ±15% At 1000 Hz test |
| Lowest Resonance Frequency | 220 Hz±20% |
| Output Sound Pressure Level | 89± 3db / 1 W/890 mv 10 cm |
| Average at 600.800.1000.1200 HZ | |
| Effective Frequency Band | fo -20k Hz Average SPL ±10 dB |
| Distortion | 5% Maxium at 1000 HZ 0.1W/0.1M |
| Pure tone Test | Must be normal at sine wave 6.32 V at 300HZ ~ 3KHz |
| Certificate | ROHS , CE, REACH , ISO9001 |

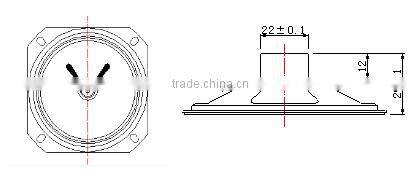

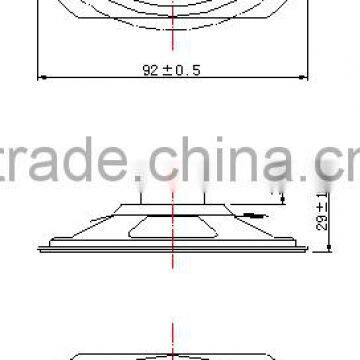

Product Drawing
