Home > Products > paper cone speaker > Professional 77mm 8ohm 1w Paper Cone Speaker
Professional 77mm 8ohm 1w Paper Cone Speaker
US$ 0.1 - 0.5
/ Piece
1000 Pieces(Min. Order)
- Xiamen Port for paper cone speaker
You May Like
Product Details
| Brand Name | HSY | Model Number | H77CP08-01 | |
| Use | Computer, Home Theatre, Karaoke Player, Mobile Phone, Portable Audio Player, Stage | |||
| Channels | 2 (2.0) | Special Feature | Mini, Portable, Wireless | |
| Place of Origin | Fujian, China |
Product Description
professional 77mm 8ohm 1w paper cone speaker ( H77CP08-01 )

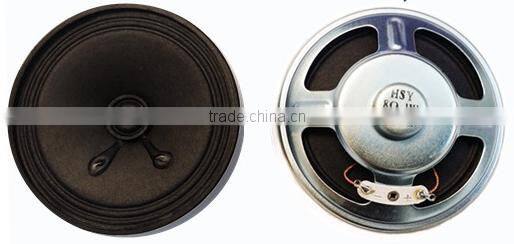

product image
Product Description
Support design and produce speakers according to customer's demand . Welcome inquiry .
| Speaker | paper cone speaker |
| Diameter | 77x17.3(H)mm |
| Rated Power | 1.0 watt Max 2.0 watt |
| Nominal Impedance | 8 0hm ±15% At 1000 Hz test |
| Lowest Resonance Frequency | 250 Hz±20% |
| Output Sound Pressure Level | 92± 3db / 0.1 W / 894 mv 10 cm |
| Average at 800.1000.1200.1500 HZ | |
| Effective Frequency Band | fo -5k Hz Average SPL ±10 dB |
| Distortion | 5% Maxium at 1000 HZ 0.1W/0.1M |
| Pure tone Test | Must be normal at sine wave 2.83 V at 200HZ ~ 3KHz |
| Certificate | ROHS, CE, REACH, ISO9001 |

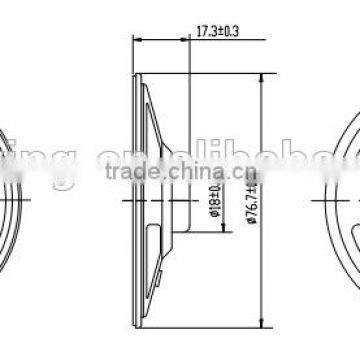

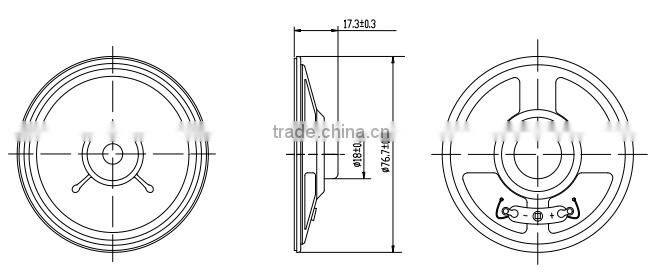

Product Drawing
