Home > Products > Mylar Speaker > 2016 Speaker 36mm 16ohm 1w Mini Speaker Driver Unit
2016 Speaker 36mm 16ohm 1w Mini Speaker Driver Unit
US$ 0.1 - 0.5
/ Piece
100 Pieces(Min. Order)
- Xiamen Port for mini speaker driver unit
You May Like
Product Details
| Brand Name | HSY | Model Number | H36M16-01 | |
| Type | Passive | Use | Computer, Home Theatre, Karaoke Player, Mobile Phone, Portable Audio Player, Stage | |
| Channels | 2 (2.0) | Special Feature | Mini, Portable, Wireless | |
| Place of Origin | Fujian, China |
Product Description
2016 speaker 36mm 16ohm 1w mini speaker driver unit ( H36M16-01 )
Product Image
Product Description
Support design and produce speakers according to customer's demand . Welcome inquiry .
| Speaker | mini speaker driver unit |
| Diameter | 36 x 5.0(H)mm |
| Rated Power | 1.0 watt Max 2.0 watt |
| Nominal Impedance | 16 Ω±15% At 1000 Hz test |
| Lowest Resonance Frequency | 530Hz ± 20% |

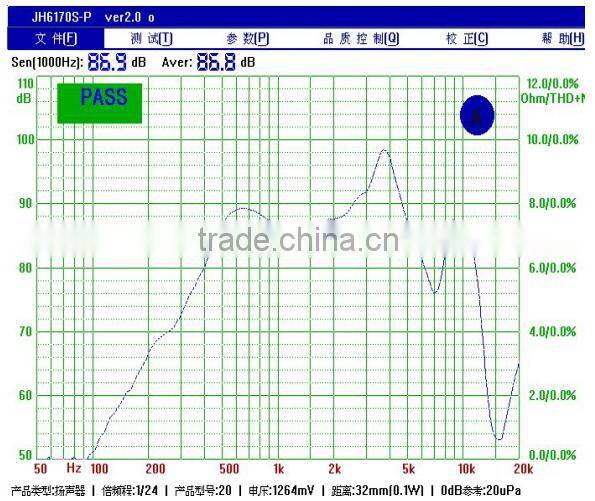

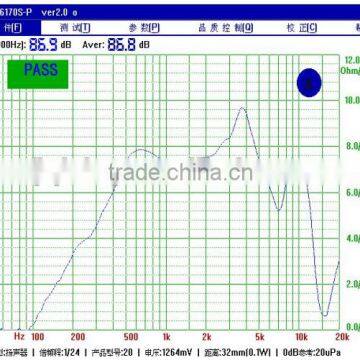

| Output Sound Pressure Level | 86± 3db / 0.1 W/890 mv 10 cm Average at 600.800.1000.1200 HZ |
| Effective Frequency Band | fo -7k Hz Average SPL ±10 dB |
| Distortion | 5% Maxium at 1000 HZ 0.1W/0.1M |
| Pure tone Test | Must be normal at sine wave 2.83 V at 300HZ ~ 3KHz |
| Certificate | ROHS, CE,, REACH, ISO9001 |

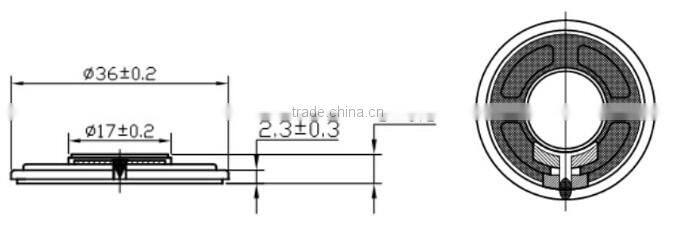

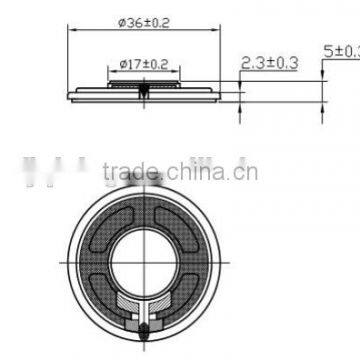

Product Drawing
