KSD301 Thermostat 10a 250v
- Shenzhen HK
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Tianrui | |
| Model Number | KSD301 |
Product Description
Main products include glass / ceramic tube fuses, thermal cutoff fuses, thermal protector/thermal switch/temperature switch, thermostats, automotive fuses, miniature fuses, SMD fuses, resettable fuses, fuse blocks, holders & clips.
A bimetal thermostat/temperature thermostat includes a fixing plate which has a fixing contact at one end and the other end of which is connected to an external circuit via a first terminal. There is a movable plate which has a movable contact contactable with the fixing contact at one end and the other end of which is connected to an external circuit via a second terminal, also included is a bimetal plate which is deformed when the temperature thereof is increased to a preset predetermined value, thereby deforming the movable plate in the direction such that the movable contact is separated from the fixing contact. The Internal conductive parts (e.g. the fixing and movable plates) are formed of a material having an electrical conductivity of 50%IACS and higher.
Applications: hair dryers,water heaters,coffee maker,irons, microwave ovens,etc.
|
| • | Snap–action Klixon disc |
• | Thermal motor protection reacting to both current and temperature |
• | Compact design |
• | High cycle life and reliability |
• | Terminal material provides trouble–free welding and in pre–tinned variation easy wavebath-soldering |
• | Prevents overly high motor temperatures by providing very precise tripping times |
• | Current–time characteristic optimized for each specific application |

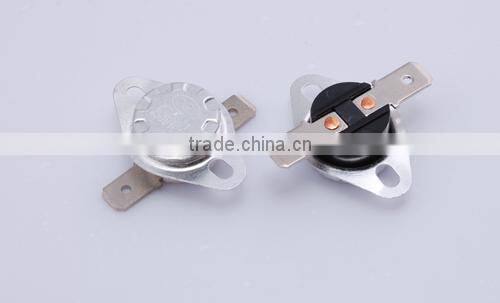

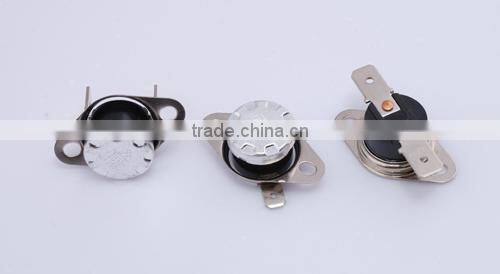

KSD301 bimetal thermostat
KSD301 thermostat 10a 250v
1.Rated electrical performance: 250Vac, 10A/15A/16A
2.Open temperature: 45 °C ~~ 220 ° C (according to the customers' requirements)
3.Open temperature tolerance: ± 2 ° C; ± 3 ° C; ± 5 ° C; ± 10 ° C; ± 15 ° C.
4.On-off temperature tolerance : 5 to 150 ° C
5.Reset temperature tolerances: ± 2 ° C; ± 3 ° C; ± 5 ° C.
6.Electric Strength: Under the AC50Hz/1800V,it lasts one minute without breakdown flashover phenomenon
7.Insulation resistance: ≥ 100MΩ (DC 500V)
8.Contact resistance: ≤ 50mΩ
9.heat resistance: It is based on the material
10.Life: ≥ 100,000 cycles.
Action temperature | Reset temperature | Action temperature | Reset temperature | |
45±5°C | 40±6°C | 130±5°C | 100±15°C | |
50±5°C | 43±6°C | 135±5°C | 105±15°C | |
55±5°C | 45±6°C | 140±5°C | 110±15°C | |
60±5°C | 50±10°C | 145±5°C | 115±15°C | |
65±5°C | 50±10°C | 150±5°C | 120±15°C | |
70±5°C | 50±10°C | 155±5°C | 125±15°C | |
75±5°C | 55±10°C | 160±5°C | 130±15°C | |
80±5°C | 55±10°C | 165±5°C | 135±15°C | |
85±5°C | 55±10°C | 170±5°C | 140±15°C | |
90±5°C | 60±10°C | 175±5°C | 145±15°C | |
95±5°C | 65±10°C | 180±5°C | 150±15°C | |
100±5°C | 75±10°C | 185±5°C | 160±15°C | |
105±5°C | 80±15°C | 190±5°C | 165±15°C | |
110±5°C | 80±15°C | 200±5°C | 170±15°C | |
115±5°C | 85±15°C | 210±5°C | 175±15°C | |
120±5°C | 90±15°C | 215±5°C | 180±15°C | |
125±5°C | 95±15°C | 220±5°C | 185±15°C | |
The specification can also be manufactured as request. | ||||
KSD301 thermostat 10a 250v

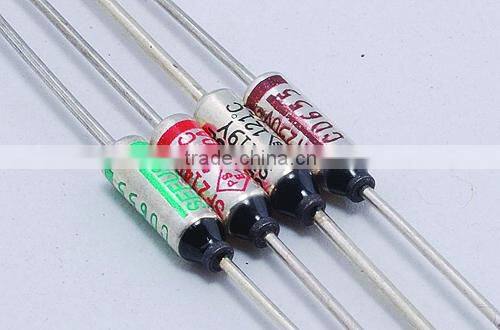

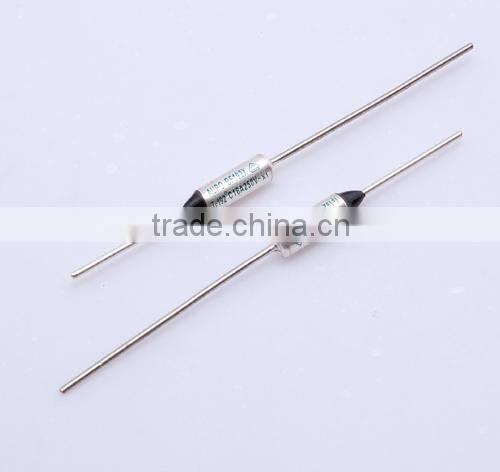

Thermal fuses applied with KSD301 bimetal thermostats:
Factory View
Product Gallery
Sample shipment: International express to be collected, or freight prepaid through Paypal
Goods shipment: International express, airport to airport, sea
CONTACT ME FOR MORE ABOUT KSD301 thermostat 10a 250v
