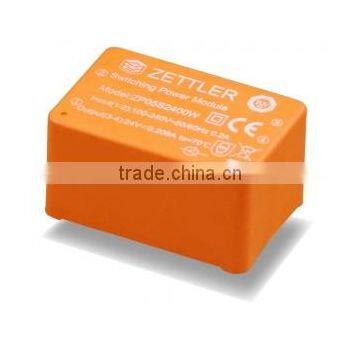

5W AC-DC POWER MODULE HIGH PRECISION SINGLE OUTPUT SERIES (P-S ISOLATED)
- Xiamen
- Credit Card
You May Like
-
10WB SINGLE OUTPUT MINI SERIES AC-DC POWER MODULE (P-S ISOLATED)
-
1W , 5 V,AC/DC PCB Mount Power Supply,switching power supply module,Compact,fixed,,Single Output,P-S ISOLATED
-
1W , 3.3 V,AC/DC PCB Mount Power Supply,switching power supply module,Compact,fixed,,Single Output,P-S Isolated
-
1W , 6V,AC/DC PCB Mount Power Supply,switching power supply module,Compact,fixed,,Single Output,P-S Isolated
-
1W , 7V,AC/DC PCB Mount Power Supply,switching power supply module,Compact,fixed,,Single Output,P-S Isolated
-
1W, 9V,AC/DC PCB Mount Power Supply,switching power supply module,Compact,fixed,Single Output,P-S Isolated
Product Details
| Place of Origin | Fujian, China | Brand Name | Zettler | |
| Model Number | ZP05S2400W |
Product Description
FEATURES
1. Input Range100-240VAC 50/60Hz
2. Output range from 5V-24VDC
Also can be customized
3.Switching Power Module For PCB Mount
4. Encapsulated Design Prevent dust and humidity
5. Self-Extinguishing Plastic 94V-0
6.High efficiency, Low Temperature Rise
7.Dielectric Strength 3600VAC
8. Integrated perfect Protection
Low standby power and Leakage Current
9. Integrated EMC network
10.Dielectric Strength:3600Vac 5mA1min
11.Protection: OLP:Output over load protection
OSP:Output short protection
OTP:Over temperature protection
A.Compact Size
B.UL,TUV Approved
OUTLINE DIMENSIONS
ELECTRONIC SPECIFICATIONS
Order Number | Leakage Current | No load Loss | Output | Output | Voltage | Ripple | Noise | Ambient | Weight | Certificate | ||
TUV | UL | CE | ||||||||||
ZP05S0500W | 0.3mA | 0.3W | 5V | 1000 | ±3% | <50mV | <1% Vout | 70 | 50g | YES | YES | YES |
ZP05S0600W | 0.3mA | 0.3W | 5V | 833 | ±3% | <50mV | <1% Vout | 70 | 50g | YES | YES | YES |
ZP05S0700W | 0.3mA | 0.3W | 5V | 714 | ±3% | <50mV | <1% Vout | 70 | 50g | YES | YES | YES |
ZP05S0900W | 0.3mA | 0.3W | 9V | 555 | ±3% | <50mV | <1% Vout | 70 | 50g | YES | YES | YES |
ZP05S1000W | 0.3mA | 0.3W | 10V | 500 | ±3% | <50mV | <1% Vout | 70 | 50g | YES | YES | YES |
ZP05S1200W | 0.3mA | 0.3W | 12V | 417 | ±3% | <50mV | <1% Vout | 70 | 50g | YES | YES | YES |
ZP05S1500W | 0.3mA | 0.3W | 15V | 333 | ±3% | <50mV | <1% Vout | 70 | 50g | YES | YES | YES |
ZP05S1800W | 0.3mA | 0.3W | 18V | 277 | ±3% | <50mV | <1% Vout | 70 | 50g | YES | YES | YES |
ZP05S2400W | 0.3mA | 0.3W | 24V | 208 | ±3% | <50mV | <1% Vout | 70 | 50g | YES | YES | YES |
