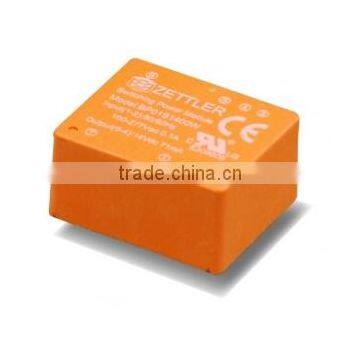

1W AC-DC POWER MODULE BP SERIES (P-S ISOLATED)
- Xiaemen
- Credit Card
You May Like
-
1W AC-DC POWER MODULE SINGLE OUTPUT SERIES (P-S ISOLATED)
-
3W AC-DC POWER MODULE SINGLE OUTPUT SERIES (P-S NON-ISOLATED)
-
5W AC-DC POWER MODULE HIGH PRECISION SINGLE OUTPUT SERIES (P-S ISOLATED)
-
10WB SINGLE OUTPUT MINI SERIES AC-DC POWER MODULE (P-S ISOLATED)
-
1W , 5 V,AC/DC PCB Mount Power Supply,switching power supply module,Compact,fixed,,Single Output,P-S ISOLATED
-
1W , 3.3 V,AC/DC PCB Mount Power Supply,switching power supply module,Compact,fixed,,Single Output,P-S Isolated
Product Details
| Place of Origin | Fujian, China | Brand Name | Zettler | |
| Model Number | BP01D1403W |
Product Description
FEATURES
1. Input Range100-277VAC 50/60Hz
2. Output range from 3.3V-14VDC
Also can be customized
3. Switching Power Module For PCB Mount
4. Encapsulated Design Prevent dust and humidity
5. Self-Extinguishing Plastic 94V-0
6. High efficiency, Low Temperature Rise
7. Dielectric Strength 3600VAC
8. Integrated perfect Protection
Low standby power and Leakage Current
9. Integrated EMC network
10. Dielectric Strength:3600Vac 5mA1min
11. Protection: OLP:Output over load protection
OSP:Output short protection
OTP:Over temperature protection
A.Compact Size
B. UL,TUV Approved
OUTLINE DIMENSIONS
ELECTRONIC SPECIFICATIONS
Order Number | Leakage Current | No load Loss | Output(DC) | Ripple & Noise | Ambient | Weight | Certificate | |||
S1 | S2 | Accuracy | UL | CE | ||||||
BP01D1403W | 0.2mA | 0.3W | 14V@48mA | 3.3V@23mA | ±5% | <1% Vout | 60 | 20g | YES | YES |
BP01D1405W | 0.2mA | 0.3W | 14V@43mA | 5V@28mA | ±5% | <1% Vout | 60 | 20g | YES | YES |
BP01D0803W | 0.2mA | 0.3W | 8V@72mA | 3.3V@53mA | ±5% | <1% Vout | 60 | 20g | YES | YES |
BP01D0805W | 0.2mA | 0.3W | 8V@42mA | 5V@83mA | ±5% | <1% Vout | 60 | 20g | YES | YES |
BP01S1400W | 0.2mA | 0.3W | 14V@71mA | ±5% | <1% Vout | 60 | 20g | YES | YES | |
BP01S0800W | 0.2mA | 0.3W | 8V@83mA | ±5% | <1% Vout | 60 | 20g | YES | YES | |
