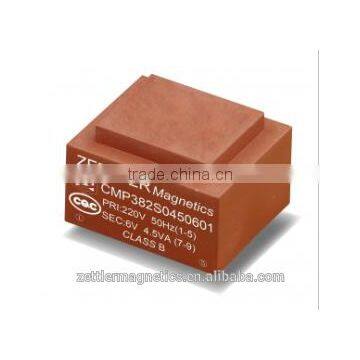

EI38(3.2-4.5VA) SEALED TRANSFORMER CMP SERIES WITH PTC
- Xiamen Port
- Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Zettler |
Product Description
FEATURES
CQC Aproved
CQC file No,.:CQC13001094903
OUTLINE DIMENSIONS
ELECTRONIC SPECIFICATIONS
POWER:3.2VA
Order Number | Input Voltage | No-load Voltage (Vac) | SEC. | Rated Current | Rated Power | Ambient | Weight (g) | Certificate | |
CQC | CE | ||||||||
CMP382S0320601 | 220V | 8 | 6 | 533 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382S0320901 | 220V | 12 | 9 | 356 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382S0321001 | 220V | 14 | 10 | 320 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382S0321201 | 220V | 16 | 12 | 267 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382S0321501 | 220V | 20 | 15 | 213 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382S0321801 | 220V | 24.1 | 18 | 178 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382S0322401 | 220V | 32.4 | 24 | 133 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382D0320601 | 220V | 2X8.0 | 2X6 | 2X267 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382D0320901 | 220V | 2X12.0 | 2X9 | 2X178 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382D0321001 | 220V | 2X14 | 2X10 | 2X160 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382D0321201 | 220V | 2X16.0 | 2X12 | 2X133 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382D0321501 | 220V | 2X20 | 2X15 | 2X107 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382D0321801 | 220V | 2X24.1 | 2X18 | 2X89 | 3.2VA | T 70 B | 150g | yes | yes |
CMP382D0322401 | 220V | 2X32.4 | 2X24 | 2X67 | 3.2VA | T 70 B | 150g | yes | yes |
POWER:4.5VA
Order Number | Input Voltage | No-load Voltage (Vac) | SEC. | Rated Current | Rated Power | Ambient | Weight (g) | Certificate | |
CQC | CE | ||||||||
CMP382S0450601 | 220V | 7.6 | 6 | 533 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382S0450901 | 220V | 11.7 | 9 | 356 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382S0451001 | 220V | 13.5 | 10 | 320 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382S0451201 | 220V | 15.5 | 12 | 267 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382S0451501 | 220V | 19.5 | 15 | 213 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382S0451801 | 220V | 23.3 | 18 | 178 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382S0452401 | 220V | 31.9 | 24 | 133 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382D0450601 | 220V | 2X7.6 | 2X6 | 2X267 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382D0450901 | 220V | 2X11.7 | 2X9 | 2X178 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382D0451001 | 220V | 2X13.5 | 2X10 | 2X160 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382D0451201 | 220V | 2X15.5 | 2X12 | 2X133 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382D0451501 | 220V | 2X19.5 | 2X15 | 2X107 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382D0451801 | 220V | 2X23.3 | 2X18 | 2X89 | 4.5VA | T 40 B | 150g | yes | yes |
CMP382D0452401 | 220V | 2X31.9 | 2X24 | 2X67 | 4.5VA | T 40 B | 150g | yes | yes |
