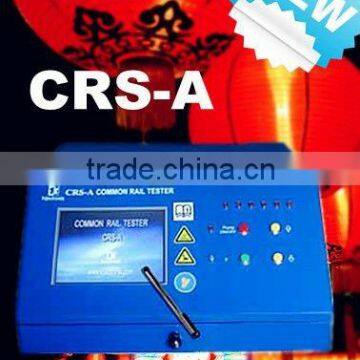

Common Rail System Tester CRS-A

Specifications

CRS-A Common Rail Tester is the electronic equipment for testing all kinds of common rail fuel injection injectors and pumps by Bosch, Delphi, Denso and Siemens. Upgrade a traditional diesel high pressure pump test bench to a full functioned equipment for all tests of repairing common rail injectors, pumps or CR systems.

CR Injector Drivers:

6 solenoid injectors

High voltage for Bosch, Denso injectors

Low voltage for Delphi injectors

6 piezoelectric injectors, made by Siemens

Short circuit protection for both solenoid and piezo injector drivers

CR Pump Drivers:

Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids

Testing pumps with single regulation valve

Bosch CP1/CP2/CP3

Delphi CRSP

Denso HP3/HP4

Testing Siemens DCP pump with two regulation valves

Drive 3 DRVs for testing pump capability

2 special output channels synchronous with pump speed to drive the two control solenoids on Denso HP0 (ECD-U2)pump

Fuel Rail Pressure Sensor

Pre-calibrated for Bosch, Delphi, Denso pressure sensors

User calibrateable for different pressure sensor

Automatic rail pressure control

Software based over-pressure protection

 User Interface

Touch screen with a simple 4-key panel

User friendly multi-language interface

User manageable test database

Standard keyboard and mouse

Standard SD card port for system software upgrade, a SD card is included in the package

6 LED to indicate injector status

Standard VGA port for external large screen display

 Others

One year manufacture warranty

One year software free upgrade

Injector and pump test procedure and database

DRV adaptor for pump flow rate test (Optional)

Rich accessories

Matching supporting cabinet with 4-wheels(Optional)
