Home > Products > Common Rail Equipment > Common Rail Tester CRS-1200

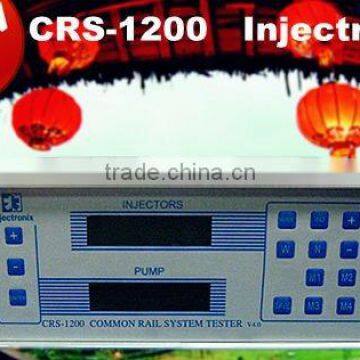

Common Rail Tester CRS-1200

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Common Rail Tester		Place of Origin	Beijing, China
Brand Name	Injectronix		Model Number	CRS-1200

Product Description

Specifications

Test common rail system, consists of a pump, a fuel rail and six injectors, plus 3 DRV valves on a conventional pump test bench.

CRS-1200 targets the CR systems with a pump, such as Bosch CP1/CP2/CP3, Delphi CRSP, Denso HP3/HP4 and Siemens DCP, and 6 CR solenoid injectors.
A standard high pressure pump test bench with a common rail fuel system tester CRS-1100 will fulfill most tasks for repairing a CR system and the components, such as to test injector fuel injection and return quantities, nozzle spray atomization, and with the optional DRV valves to test a pump condition by measure the flow rate at different rail pressure.

Design Features

Pump control

Two independent channels of pump regulation valve control signals

The first channel is for most pumps, such as Bosch CP1/CP2/CP3, Delphi CRSP and Denso HP3/HP4.

The second channel is to drive Siemens DCP pump, which has two regulation valves.

The second channel is capable to drive 3 DRV valves (optional), to test pump capacity by measure the high pressure flow at different pump speeds and rail pressures.

Monitoring fuel rail pressure

Injector driving signal

Dual-voltage mode

High voltage drive for Bosch/Denso injectors

Low voltage drive for Delphi injectors

Adjustable injection frequency and pulse width

Modulated driving signal to ensure the safety of the solenoids of the injectors

Software based over-pressure protection

Short circuit protection for solenoid driving signals

Rich accessories, ready to test Bosch, Denso and Delphi injectors and pumps

New Function

Four memory keys have been added to the keypad to allow user to save and retrieve predefined parameters for four test cases.

Simulate signals to drive a CR pump, 6 CR injectors, plus 3 additional DRVs
