Home > Products > Digital Signage Solution > Intel Haswell Celeron 1.4GHz/1.6GHz Dual Core CPU Fanless Mini Box PC NIS-896 Barebone System

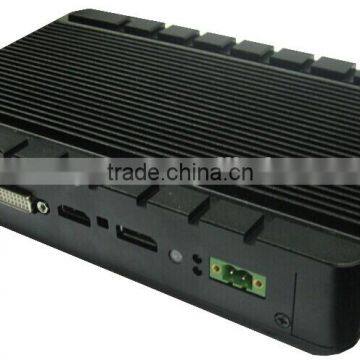

Intel Haswell Celeron 1.4GHz/1.6GHz Dual Core CPU Fanless Mini Box PC NIS-896 Barebone System
Negotiable
/ Piece
1 Piece(Min. Order)
- SHENZHEN
- Credit Card
You May Like
-
AMD Kabini G-SOC Quad/Dual Core APU Mini PC Box PC Barebone System NIS-K880C
-
AMD Fusion APU Nano-ITX Motherboard DS-2018 Single Board Computers
-
AMD APU T56 Digital Signage Motherboard DS-2018 Motherboard
-
AMD Kabini G-SOC 2.0/2.4GHz Dual Core / Quad core APU Full HD Digital Signage Nano-ITX Motherboard DS-2019
-
AMD Kabini G-SOC Quad/Dual Core APU Mini PC Box PC Nettop NIS-K880C HTPC
-
AMD Kabini G-SOC 2.0/2.4GHz Dual Core / Quad core APU Full HD Digital Sinage Nano-ITX Motherboard DS-2019
Product Details
| Products Status | Stock | Type | Embedded Computer | |
| Brand Name | YACOO | Model Number | NIS-896 | |
| Place of Origin | Guangdong, China |
Product Description
| Specifications | ||
| Processor | CPU | Intel® Haswell Celeron 2957U 1.4GHz Duo Core CPU |
| CPU Package | Onboard | |
| FSB | ||
| Chipset | Intel® Haswell | |
| BIOS | SPI BIOS | |
| RAM | Architecture | DDR3 MAX 1666 MT/s |
| Capacity | MAX 16GB | |
| Socket | SODIMM | |
| Display | Graphic Controller | Intel® HD4000 Graphic media accelerator |
| Dual LVDS | N/A | |
| DVI | DVI-I port, Max. resolution:4K | |
| HDMI | HDMI 1.4, Max. resolution:4K | |
| DP | DISPLAY PORT++ 1.2, support DP Dangle,Max. Resolution:4K | |
| Multiplex Display | HDMI+DP+DVI Synchronous or asynchronous display | |
| LAN | Controller | LAN 1: Intel®I210 POE GbE |
| LAN 2: Intel®I210 POE GbE | ||
| Audio | Controller | Realtek HD ALC662 audio decoder(Right&left Channel + Mic) |
| Super I/O | Controller | ITE8782, support 4*COM |
| H/W Monitor | Watch Dog Timer | 0-255 sec., provide watch dog routine |
| Thermal | Fanless Aluminum passive heatsink | |
| I/O | USB 3.0 | 2 x USB 3.0 PORT |
| USB 2.0 | 4*USB2.0 / 1.1, Max. support +5V@1A. | |
| Serial Port | Com1 9-line RS232,RS232/485 (Optional),TX/RX signal, support 4000Vsurge protection | |
| Com2-4 3-line RS232,TX/RX signal, support 4000V surge protection | ||
| GPIO | 8bits, support routine, freely define I/O,3.3V@24mA level | |
| Expansion Bus | SMBUS | Inter integration |
| Mini-PCIe | 1* Half-size Mini-PCIe socket, support PCIe & USB devices | |
| 1* Full-size Mini-PCIe socket, support USB 3G/4G communication Module | ||
| UIM Scoket | 3G UIM slot | |
| Storage | SATA | 1* standard 7Pin SATA-III & power port, max. transmission rate:3Gb/s |
| Laptop SATA | 7+15Pin | |
| M-SATA | 1*Half-size m-SATAII scoket, max. transmission rate:3Gb/s | |
| Power | Power Type | DC9-19V extended voltage dynamic input,support reverse power protection, 3 Pin 5.08mm pheonix port |
| Power Consumption | Typical Power: 15W | |
| Indicator | Status Indicator | HDD LED |
| POWER LED | ||
| Environment | Operating Temp. | -20°C ~ 60°C With SSD |
| 0°C ~ 40°C With HDD | ||
| Storage Temp. | -40°C ~ 80°C | |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage Humidity | 0% ~ 90% relative humidity, non-condensing | |
| Formfactor | Dimensions | 210x136x35mm |
| Weight | ||
| Certificate | FCC, CE, RoHS compliant | |
