Home > Products > Industrial PC > Intel Haswell/Broadwell U-series CPU Industrial Embedded Computers NIS-898

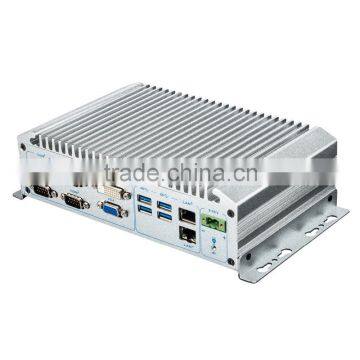

Intel Haswell/Broadwell U-series CPU Industrial Embedded Computers NIS-898
Negotiable
/ Piece
1 Piece(Min.Order)
- SHENZHEN
- Credit Card
You May Like
-
Intel Haswell/Broadwell U-series Industrial Computers NIS-H899
-
Intel Atom Industrial Fanless Mini PC NIS-928 Embedded PC
-
Intel Haswell I3/I5/I7 CPU 4*LAN Embedded Industrial Computer NIS-H892
-
Intel Atom N2600/2800 CPU Fanless Industrial PC NIS-928 Embedded Box PC Barebone System
-
Intel Haswell I3/I5/I7 CPU 4*LAN Fanless Industrial Computer NIS-H892 Barebone System
-
Intel Atom N2800 CPU Fanless Industrial PC NIS-928 Mini Box PC IPC
Product Details
| Type | Embedded Computer | Brand Name | YACOO | |
| Model Number | NIS-898 | Place of Origin | Guangdong, China |
Product Description
| Specification | ||
| Processor | CPU | Intel® Haswell/Brodwell Useries CPU (Duo Core),Celeron/I3/I5/I7 CPU compatible |
| CPU Package | Onboard | |
| FSB | DMI | |
| Chipset | Intel® Haswell/Brodwell U-series | |
| BIOS | System BIOS: SPI BIOS, re-chargeable CMOS battery 65mah | |
| Memory | Architechture | Sinlge Channel Low voltage DDR3 1666 MT/s |
| Capacity | MAX 16GB | |
| Socket | SODIMM | |
| Display | Graphic Controller | Intel® HD4000/5000/6000 series graphic media accelerator |
| DVI | DVI-I connetor, max. resolution:4K | |
| VGA | Support VGA output | |
| Dual Display | VGA+DVI Synch. or asynch display | |
| Ethernet | Controller | LAN1: Intel®I210 GbE LAN |
| LAN2: Intel®I210 GbE LAN | ||
| POE power module (optional) | ||
| Audio | Controller | Realtek HD ALC662 audio decoder(right&left channel + MIC) |
| Super I/O | Controller | NTC6106 SIO |
| H/W Monitor | Watchdog Timer | 0-255 sec., providing watchdog routine |
| Temp. Monitoring | Support CPU/Motherboard/HDD Temp. monitoring | |
| I/O Port | USB 3.0 | 4 x USB 3.0 PORT,Support Max.+5V@1A. |
| USB 2.0 | 2*USB2.0 / 1.1 compatible,Support max. +5V@1A. | |
| Serial Port | Com1 9-wire RS232 TX/RX signal, support 4000V surge protection | |
| Com2 3-wire RS232 TX/RX signal, support 4000V surge protection | ||
| Com3-COM4 3-wire RS232/RS485 optional,RS232 TX/RX signal, support 4000V surge protection, RS485 supports isolation protection. | ||
| COM5-COM6 3-wire RS232TX/RX signal, support 4000V surge protection | ||
| Optional COM7-COM10 3-wire RS232TX/RX signal, support 4000V surge protection | ||
| GPIO | DB15 male,12bit,providing routine, user-defined I/O, 3.3V@24mA | |
| Expansion Bus | Mini-PCIe | 1* half-size Mini-PCIe 1xsocket,support PCIe & USB device |
| 1*full-size Mini-PCIe 1x socket, support USB 3G/4G communication module | ||
| 3G UIM socket | ||
| Storage | SATA | Standard SATA connector, plus external SATA HDD power connector |
| M-SATA | 1*full-size m-SATA scoket, Max. transmission rate: 3Gb/s | |
| Power | Power Type | AT/ATX (Jumper selection on H/W),DC9-30V input,LTM3780 power design,support power reverse/Over-voltage protection, 2PIN 5.08mm phenix connector |
| LED Status | LED | HDD LED |
| POWER LED | ||
| L1L2 user-defined LED | ||
| COM1-COM6 LED, flicker when working | ||
| External power connector | ||
| Environment | Operating Temp. | -20°C ~ 60°C |
| Storage Temp. | -40°C ~ 80°C | |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing | |
| Storage Humidity | 0% ~ 90% relative humidity, non-condensing | |
| Dimension | Motherboard 200 x 130mm,Box PC: 215 x 136 x 50mm | |
| Weight | ||
| Certificate | FCC, CE, RoHS |
