High Vacuum Stainless Steel Gate Valve (DN63-400)
- Peking Shanghai Tianjin Shenzhen
- T/T D/P D/A Money Gram Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Vacuum | Power | Other, Manual, pneumatic,motor-driven | |
| Material | Stainless Steel | Temperature of Media | High Temperature | |
| Media | Gas | Port Size | DN63-400 | |
| Place of Origin | Shanxi, China | Model Number | CF/LF/ISO-F/GB-LP | |
| Brand Name | YQMM | Application | Other, Vacuum |
Product Description
Product name: High vacuum stainless steel gate valve
BRIEF INTRODUCTION
This series of valves are made up of manual, pneumatic and electromagnetic gate straight valves. The design of this series’ structure is reasonable, and the appearance is excellent. Besides, they have many advantages, such as stability, small size, durability, great sealing, long service life and so on. As a result, they can apply to the ultra-high vacuum equipment.
FEATURES
1. Adopt stainless steel bellows and viton o- ring sealing, no lube.
2. The inner of valves’ body is welded by stainless steel and leak rate is low.
3. Valve body design in rib structure, with small sizes, excellent appearance and light quality.
4. Adopt double-guide-rail structure, smooth movement; monolithic construction inside the valve and well-distributed holding power.
ORDER INFORMATION

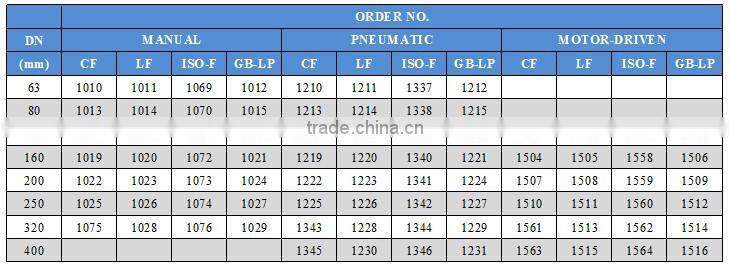

The order numbers of each product are as follows. Customers can search the numbers according to the operation mode of valves, flange size or nominal diameter.
If order pneumatic valves, please add the appointed voltage to the order number. Order Example:
1216,220VAUltra-high Pneumatic Gate Valves, DN=100mm,Voltage: AC 220V, 50Hz, CF flange

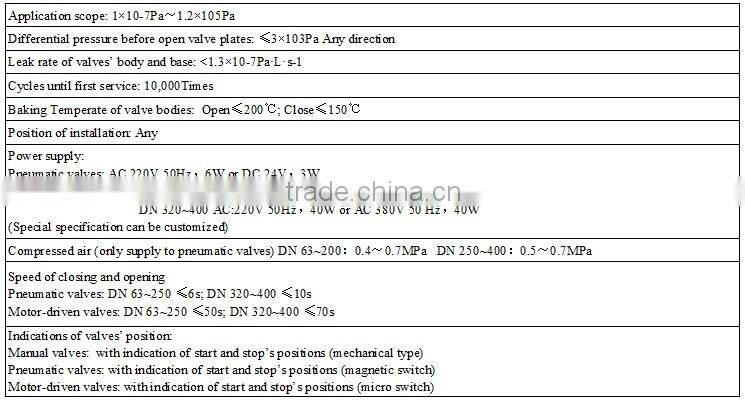

MAJOR CAPACITY TARGETS

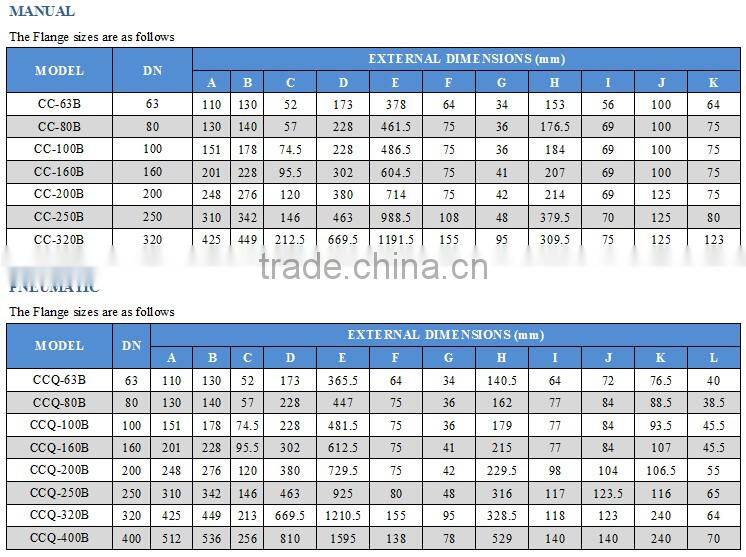

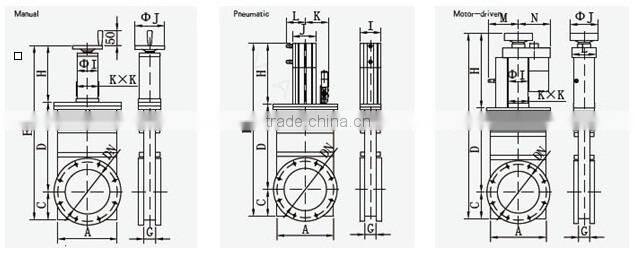

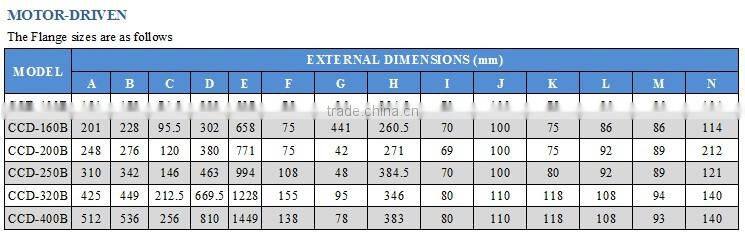

EXTERNAL DIMENSIONS

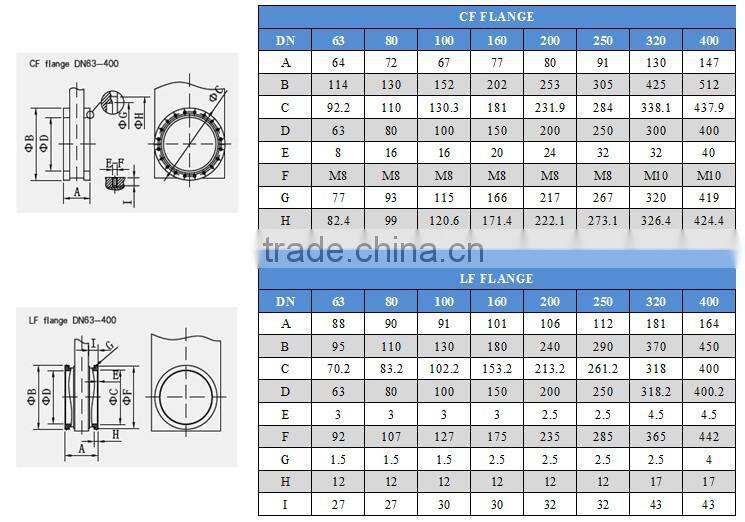

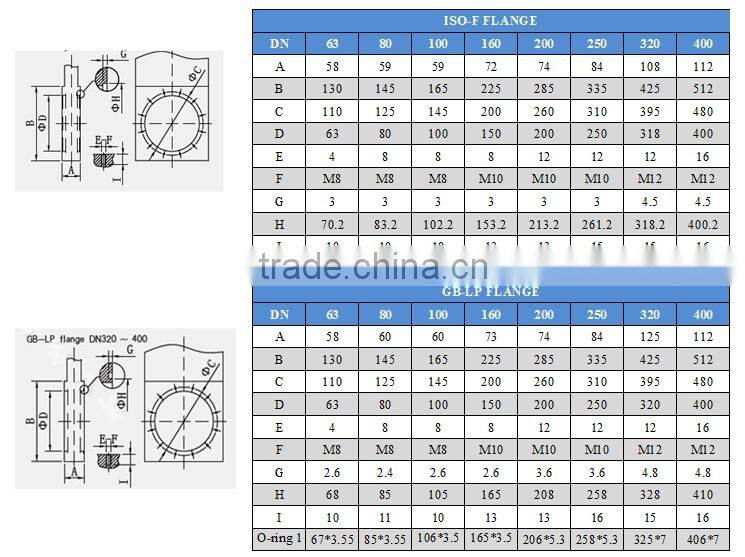

FLANGE SIZE
Packaging: Pacaked in carton or wooden case based on the quantity and customer's requirements.

Shipping: DHL/UPS/TNT/FEDEX/EMS international express/ By sea/ By air according to your quantity.



For more detailed informtion about High vacuum stainless steel gate valve, please feel free to contact me.
