Home > Products > Magnetic Separator for Mining > CTB Permanent-Magnetic Wet Roller Separator for Iron Ore
CTB Permanent-Magnetic Wet Roller Separator for Iron Ore
- Qingdao Shanghai Tianjin any port in China
You May Like
Product Details
| Condition | New | Type | Magnetic Separator | |
| Production Capacity | 1-200ton/h | Place of Origin | Shandong, China | |
| Brand Name | HUATE | Model Number | Series CTB | |
| Voltage | 380V or other according to customers' requirements | Power(W) | 1.1-11kw | |
| Weight | 350-9900kg | Certification | CE and International Quality Management System Certificate | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
For separate the magnetic-particles or eliminate the waste magnetic from non-magnetic mineral

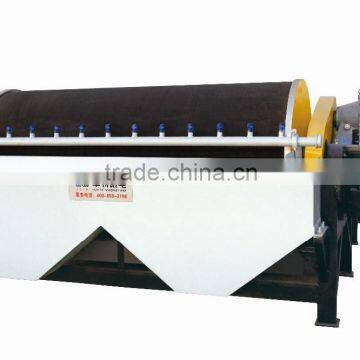

Series CTB Permanent-Magnetic Drum Separator
The permanent magnetic drum separator are used in mines and coal separating factories to separate the wet fine magnetic substances or remove the magnetic substances from the non-magnetic materials
The separators have three types of tanks :half countercurrent tank(CTB),direct flow tank(CTS) and countercurrent tank(CTN),which are used according to different granular and technological requirements.
The features of our products are :optimized computer design ,rational magnetic circuit, strong magnetic coercive force and high-remanence permanent magnetic which can keep the magnet performance in a long period and safeguard the long -term interest of the customer, the whole structure is reliable.
Major Technical Parameters:
Model | Drum size | Drum surface magnetic intensity (mT) | Processing capacity | Motor power | drum rotating speed | Total weight | |||
Pole geometric center value | Sweeping and separarting area average value | Highest magnetic intensity | t/h | m3/h | |||||
CTB-718 | 750*1800 | 120 | 155 | 180 | 20~45 | 72 | 3 | 35 | 2100 |
CTB-918 | 900*1800 | 148 | 165 | 190 | 25~55 | 90 | 4 | 28 | 2900 |
CTB-924 | 900*2400 | 148 | 165 | 190 | 35~70 | 110 | 4 | 28 | 3600 |
CTB-1018 | 1050*1800 | 148 | 165 | 190 | 40~75 | 120 | 5.5 | 22 | 4000 |
CTB-1021 | 1050*2100 | 160 | 240 | 180 | 45~88 | 140 | 5.5 | 22 | 4500 |
CTB-1024 | 1050*2400 | 148 | 165 | 190 | 52~100 | 160 | 5.5 | 22 | 5000 |
CTB-1030 | 1050*3000 | 160 | 240 | 280 | 65~125 | 200 | 7.5 | 22 | 6200 |
Huate take the lead to pass throgh the GB/9001-ISO9001:2000 international quality system certificate, ISO14001:2004 environmental management system certificate and CE Certificate.
We have more than 100 innovation patents
We offer scientific research, engineering design,manufacture of equipment, our professional staff can help you do the mineral beneficiation experiment for Free with your sample ore,and help you design the best processing line to maximize your profits, our professional engineers are avaliable overseas production installment, adjustment and after sales support ,even operation training for your native worker by the way. We are committed to building long-term customer cooperation relationship.
As the global leading magnetic application system supplier,our HUATE is specialize in manufacturing six types,30 series and more than 300 models products of specifications,includes superconductive iron separator,magnetic separators,electromagnetic and permanent magnetic iron separation equipments,electromagnetic and permanent magnetic stirrer,metal detetor, dedusting equipment,crushing equipment,classifier,feeder,grinding and separating for mineral equipments.
Depending on our rich experience and technology,we can design,suply,and install the whole process line for ore mining.
Service scope involves thermal power plant,coal industry,building material, metallurgy, powder,environment protection and so on more than 10 fields
We have partner in Australia,Brazil,India,Singapore,South Africa,Indonesia and also the products exported to USA,German,Japan,Italy and so on over 20 countries.
Quality is our life,in order to guarantee the quality of products,HUATE takes the lead to pass through the GB/T19001-ISO9001:2000 international quality system certificate.
As our motto"cooperate and innovate to persuit excellent",we are seeking partners from all over the world, if you get interested in our products ,we will be glad that you pay a visit to our company.
WEBSITE: /2012ver/en/
For packaging and shipping,we offer wooden cases,standard container or container according to customers' requirements.
For international trade terms, FOB is avaliable, and every sea port in China(mainland) is OK!
Any question or more information,don't be hesitate to contact me
Jack Li
mobile +86 18463682045
QQ no 1552212694
tel +86 536 3158857
fax +86 536 3110552
