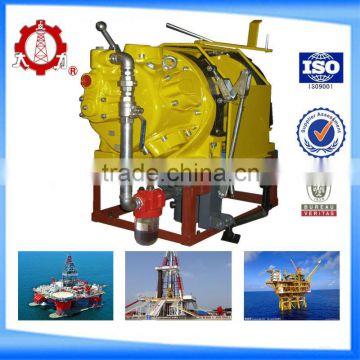

5 Ton Rope Cable Pulling Air Tugger for Oilfield
- Yantai / Qingdao
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Da Li | |
| Model Number | JQHSB50*12 | Power Source | Pneumatic | |
| Application | Other, mining,construction engineering,oilfields,, Marine, Mining, Engineering sites, | Capacity | 50KN/5Tons |
Product Description
Specifications
Air Tugger Winch1.Hooked foot brake
2.High starting torque
3.Double brakes
4.Stable under extremely conditions
JQHSB-50*12 Rope Cable Pulling Air Tugger Air Winch:
JQHSB-50*12 Rope Cable Pulling Air Tugger air winch is a kind of manual operated single drum type air winch. It adopts compressed air as its power to drive air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque)so as to lift and drag heavy cargo. Considering security, this winch is specially designed with hand brake and foot brake. This winch is widely used for drilling platform, marines, minings, engineering sites, etc. to pull heavy cargo.
Features:
1. Compact in size, light in weight, portable to move and easy to install;
2. Simple and reliable operation with little noise;
3. Low maintenance relieves your anxiety;
4. Stable in inflammable, explosive, wet, damp and other extremely operating conditions;
5. Enclosed construction keeps out dirt and dust and seals in oil and grease for complete lubrication of all moving parts;
6. High starting torque ensures starting with load, performing hoisting, lowering and stop actions;
7. The Normal Force can be tailor-made to meet your requirement.
Specifications for winches in JQH Series:
Model | JQH10*48 | JQHSY-5*48 | JQHSB35*17 | JQHSB50*12 | |
Pressure of Compressed Air (mpa) | 0.6-0.7 | 0.6-0.7 | 06-0.8 | 0.6-0.8 | |
Normal Pull Force ( KN) | 10 | 5 | 35 | 50 | |
Wire Rope Speed (m/min) | 35-48 | 48 | 17 | 12 | |
Wire Rope Diameter (mm) | 8 | 8 | 15.875 | 16 | |
Inlet Diameter (mm) | 25 | 20 | 32 | 32 | |
Pneumatic Motor | Rated Power (KW) | 4 | 4 | 17 | 17 |
Cylinder Number(pieces) | 6 | 6 | 5 | 5 | |
Cylinder Diameter(mm) | 65 | 65 | 130 | 130 | |
Air Consumption(l/sec) | 130 | 130 | 247 | 247 | |
Drum | Number (piece) | 1 | 1 | 1 | 1 |
Diameter (mm) | 175 | 175 | 222 | 222 | |
Width (mm) | 198 | 198 | 335 | 335 | |
Wheel Rim Diameter(mm) | 290 | 290 | 485 | 485 | |
Rope Capacity (M) | 120 | 120 | 120 | 120 | |
Configuration | Length (mm) | 722 | 857 | 1200 | 1200 |
Width (mm) | 342 | 342 | 920 | 920 | |
Height (mm) | 530 | 440 | 989 | 989 | |
Weight (Kg) | 117 | 128 | 480 | 480 | |
