Electric Hydraulic Logging Winch for Oilwell 4000M
- Yantai/Qingdao
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | DaLi | |
| Model Number | CJ-6000 | Power Source | Electric | |
| Application | Other, petroleum wells | Capacity | 860KG |
Product Description
Specifications
1.Automatic Spooling device2.Reliable brake system
3.Wide range of measurement with high precision
4.Fast and easy to reset

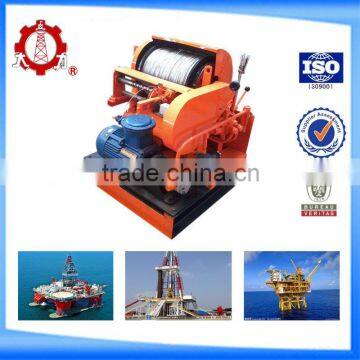

Electric Hydraulic Logging Winch:
CJ Electric Hydraulic Logging Winch is mainly applied in the measurement of petroleum wells (vertical, directional, cluster), by lifting and lowering measurement instruments to obtain the gradient, location and depth of the wells. It is driven by the electromagnetic governor motor, transferring torque to the drum through sprockets, equipping with speed controller to control the rotary speed of the drum. It is ideal equipment for logging petroleum wells.
Features:
1. Automatic spooling device;
2. Brake system is reliable and easy to operate;
3. Wide range of measurement with high precision;
4. Automaticaly show the depth and easy to reset.
5. Enclosed Construction keeps out dirt and dust and seals in oil and grease for complete lubrication of all moving parts.
Specifications:
Model: | CJ6000 ( F ) | CJ7000(F) |
The depth of logging: | 19685 ft | 22965 ft |
Power: | 7.5 Kw | 7.5 Kw |
Working pressure of hydraulic pressure systems: | ≤2276 psi | ≤2276 psi |
Max lifting power: | 916 lb | 916 lb |
Diameter of the steel wire: | 0.098 in | 0.098 in |
Means: | Diameter gear and hydraulic | stepless speed regulation |
The max rotational speed of all gears
Site of handle | The max speed(r/min) |
Ⅰ | 91 |
Ⅱ | 170 |
Overall dimension: length × width × height ( in ) = 35.24×36.22×38.39
Weight: 1762 lb
We hereby confirm that Electric Logging Winch can be tailor-made to meet your special needs and requests, with highest quality, prompt delivery and first-rate after-sale service.
