5 ton Tugger Winch for Coal minings
- Yantai / Qingdao
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Da Li | |
| Model Number | JQHSB50*12 | Power Source | Pneumatic | |
| Application | Other, mining,construction engineering,oilfields,, Marine, Mining, Engineering sites, | Capacity | 50KN/5Tons |
Product Description
Specifications
1.CCS API certified2.high quality competitve price
3.good aftersale service
4.anti-explosive under extremely work conditions
5 Ton Tugger Winch for Coal Minings:

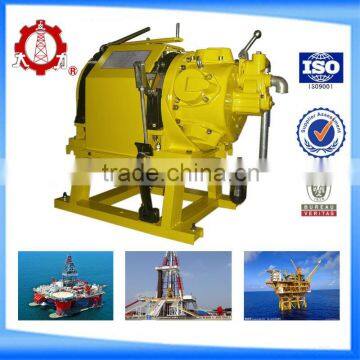

JQHSB-50*12 double-braking tugger winch is a kind of manual operated single drum type air winch. It adopts compressed air as its power to drive air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque)so as to lift and drag heavy cargo. Considering security, this winch is specially designed with hand brake and foot brake. This winch is widely used for drilling platform, marines, minings, engineering sites, etc. to pull heavy cargo.
Features:
1. Compact in size, light in weight, portable to move and easy to install;
2. Simple and reliable operation with little noise;
3. Low maintenance relieves your anxiety;
4. Stable in inflammable, explosive, wet, damp and other extremely operating conditions;
5. Enclosed construction keeps out dirt and dust and seals in oil and grease for complete lubrication of all moving parts;
6. High starting torque ensures starting with load, performing hoisting, lowering and stop actions;
7. The Normal Force can be tailor-made to meet your requirement.
Technical Parameter for Winches JQH50 series:
Item | Parameters | Unit | ||||
Working Pressure | 0.63-0.9 | Mpa | ||||
Rated Pull Force | 50 | kN | ||||
Max Lifting Speed | 12 | m/min | ||||
Air Motor | Rated Power | 17 | kW | |||
Cylinder Diameter/Piston Stroke | 130/76 | mm | ||||
Cylinder Number | 5 | pcs | ||||
Air Consumption | 247 | L/S | ||||
Drum | Diameter | φ222 | mm | |||
Width | 335 | 435 | 610 | 605 | mm | |
Wheel Rim Diameter | φ465 | φ465 | φ465 | φ580 | mm | |
Cable Diameter | φ15.875 | mm | ||||
Cable Storage | 120 | 160 | 220 | 450 | m | |
Air Inlet | R1 1/4 | in | ||||
Exhaust Port | Rc1 1/2 | in | ||||
Basic Configurations:
Brake Type | Hand Brake and Auto Brake or Hand and Foot Brake | |
Bed plate | Base plate | Srew connection |
Otic placode connection | ||
Rotating Base | Flange Connection | |
T-threaded Connection | ||
Pin Connection | ||
Low bedplate | Screw thread Connection | |
