Hydraulic Hand Stacker EFS1016(G)/1030(B)
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Cheuk's | Model Number | EFS | |
| Type | Manual Pallet Truck | Power Souce | Other, Manual | |
| Rated Loading Capacity | 1000kg | Max. Lifting Height | 3M | |
| Min. Lifting Height | 85MM | Fork Length | 1150mm | |
| Fork Width | 800mm | Overall Dimensions | 1450*800*1320mm | |
| Certification | CE ISO | After-sales Service Provided | No overseas service provided |
Product Description

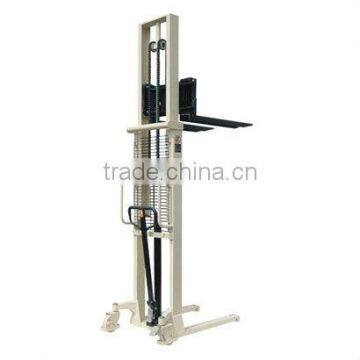

The Product Intro of Hand Stacker EFS1016(G)/1030(B)
The hydraulic pump uses the newest technology
Special C-shaped steel helps provide strength and rigidity
Adjustable forks for various needs
Save time and manpower
Conforms to CE safety standard
Conforms to EN1757-1
The Specification of Hand Stacker EFS1016(G)/1030(B)
ITEM/TYPE |
| EFS1016 | EFS1016G | EFS1030 | EFS1030B |
Capacity Q | Kg | 1000 | 1000 | 1000 | 1000 |
Load center c | mm | 450 | 575 | 575 | 450 |
Max.Fork Height | mm | 1600 | 1600 | 3000 | 3000 |
Lowered Fork Height | mm | 80 | 85 | 85 | 80 |
Fork Adjust Width | mm | 300~800 | 550 | 550 | 300~740 |
Fork Width | mm | 140 | 160 | 160 | 140 |
Fork Length | mm | 900 | 1150 | 1150 | 900 |
Overall length | mm | 1488 | 1660 | 1668 | 1496 |
Overall height | mm | 2010 | 2010 | 2060 | 2060 |
Overall width | mm | 850 | 740 | 740 | 800 |
Ground Clearance | mm | 20 | 25 | 25 | 23 |
Front Wheel | mm | 74x55 | 74x55 | 74x70 | 74x70 |
Rear Wheel | mm | 180x50 | 180x50 | 180x50 | 180x50 |
Net Weight | Kg | 184 | 172 | 310 | 332 |
Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools
and so on.
Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
