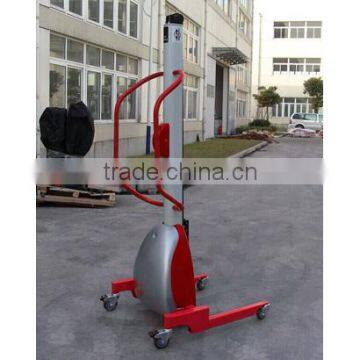

Lifter transporter--MES150

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shanghai, China
Brand Name	Cheuk's	Model Number	MES
Type	Manual Pallet Truck	Power Souce	Other, manual
Rated Loading Capacity	150kg	Max. Lifting Height	1440mm
Min. Lifting Height	65mm	Fork Length	500mm
Fork Width	650mm	Overall Dimensions	9208201500mm
Certification	CE ISO	After-sales Service Provided	No overseas service provided

The Product intro of Lifter transporter stacker crane--MES150

Our Lifter-Transporter is the excellent work transporter for Industrial, Laboratory,
Office and White Coal industrial applications

The specification of Lifter transporter stacker crane--MES150

1KG=2.2LB 1INCH=25.4M

Identification	1.2	Model		MES150	MES150A	MES150B	MES150/801
	1.4	Type of operation hand, standing,seated, pedestrian,order-picker		hand
	1.5	load capacity(rated load)	Q(kg)	150
Weights	2.1	Service weight	Kg	58	56	54	60
Wheels, chassis	3.1	Tryes:solid,rubber, superelastic,pneumatic, polyurethane		polyurethane
	3.2	Trye size, front		75x2
	3.3	Trye size, rear		100x32
	3.5	wheels,number front/rear (X=driven wheels)		4
Basic Dimensions	4.2	lowered mast height	h1(mm)	1870
	4.4	lift height	h3(mm)	1420	1435	1440	1400
	4.15	lowered height	h13(mm)	130	115	110	65
	4.19	overall length	l1(mm)	880	865	920	920
	4.21	overall width	b1(mm)	520	500	500	801
	4.22	fork dimensions	l(mm)	460	445	500	500
	4.25	width over forks	b5(mm)	520	400(Φ40x2)	Φ60	650
Performance Data	5.1	travel speed,laden/unladen	km/h	4/5.3
	5.2	lift speed, laden/unladen	mm/s	125/156
	5.3	lowering speed, laden/unladen	mm/s	96/89
E-Motor	6.1	Lift motor rating	W	90
	6.2	Battery acc.to BS,no		NO
	6.3	Battery voltage,nominal capacity	V/AH	2x12/7
