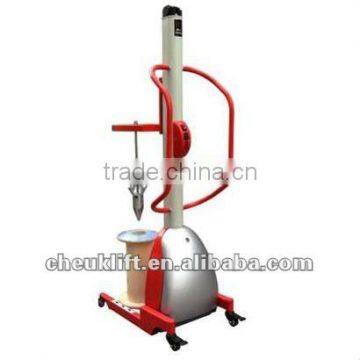

Bobbin lifter HD1015

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Cheuklift
Model Number	HD1015

Product Description

Specifications

Bobbin lifter HD1015
1.It is light, nimble and easy to operate
2.New design, auto hook and unhook inner hole of bobbin

1.It is light, nimble and easy to operate
2.New design, auto hook and unhook inner hole of bobbin
3.Totally mechanical design, durable, non-maintaining
4.Because of load lifting mode, the material can avoid being damage.
5.It can be used in factory and company that have bobbin, such as electric machinery plant,transformer factory, electric wire and cable factory.
6.It can be customized.

Characteristic	1.1	Model	HD1015
	1.2	Type of operation:	Hand
	1.3	Rated Load Capacity	150
	1.4	Lift height	1100
	1.5	Lowered height	250
Wheels	2.1	Tyre(rubber, superelastic, pneumatic,polyurethane)	polyurethane
	2.2	Tyre size front	75x2
	2.3	Tyre size rear	100x32
	2.4	Wheel number (front/rear)	2directional*2universal
Body dimension	3.1	Overall height	1958
	3.2	Overall length	880
	3.3	Overall width	530
	3.4	Fork outer width	530
	3.5	Fork inner width	415
	3.6	Fork height	85
	3.7	Fork length	520
Bobbin dimension	4.1	front edge diameter	100
	4.2	inner diameter	150
	4.3	bottom diameter	≤400
	4.4	front edge height	50
	4.5	bobbin height	400-1000
Performance	5.1	lift speed load/unload	67/82
Performance	5.2	falling speed load/unload	96/89
Motor	6.1	motor power	90
Motor	6.2	battery	2X12/7
Weight	7.1	N.W	60

It can be customized according to bobbin’s dimension.
Different kind of lifters for you to choose: Hand bobbin lifter, semi-electric bobbin lifter, power bobbin lifter and counterbalance bobbin lifter
