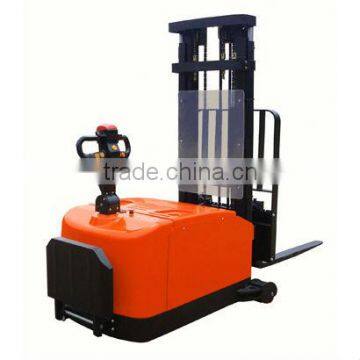

Counterbalance Power Stacker--CLP15-AC-EPS Series
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Cheuk's | Model Number | CLP15-AC-EPS | |
| Type | Powered Pallet Truck | Power Souce | AC Motor | |
| Rated Loading Capacity | 1500 | Max. Lifting Height | 1600-3600 | |
| Min. Lifting Height | 55 | Fork Length | 1070mm | |
| Fork Width | 100 | Overall Dimensions | Pls check | |
| Certification | CE ISO | After-sales Service Provided | No overseas service provided |
Product Description
The product intro of Stacker--CLP15-AC-EPS Series
1. Capacity 1500kg,it breaks the limitation of the original max capacity 1T of counterbalance power stacker
2. AC drive and control system
3. EPS(electric power steering) is a new technology applied in power stacker and pallet truck.
4. Easy to change direction
Electronic Power Steering Technology IntroductioElectronic Power Steering System—say goodbye to brute force.
Electronic power steering is a system which helps to steer the wheels with some source of power other than the drivers manual force with which he turns the steering.
This feature adds to the comfort while driving as less effort is needed to turn the steering by the operator.
Electronic Power Steering needs less maintenance compared to hydraulic power steering.
And it gives better response at different speeds as compared to hydraulic power Steering.
The specification of Power Stacker--CLP15-AC-EPS Series
1KG=2.2LB 1INCH=25.4MM
| Characteristics | Model | unit | CLP1516-AC-EPS | CLP1525- AC-EPS | CLP1530- AC-EPS | CLP1533-AC-EPS | CLP1536-AC-EPS | ||
| 1 | Rated capacity | kg | 1500 | ||||||
| 2 | Load center distance | mm | 500 | ||||||
| 3 | Type of operation | pedestrian/standing | |||||||
| Dimensions | 4 | Max lifting height | mm | 1600 | 2500 | 3000 | 3300 | 3600 | |
| 5 | Min fork height | mm | 55 | ||||||
| 6 | Standard fork size(L×W) | mm | 1070×100 | ||||||
| 8 | Min turning radius | mm | 1699/1785(tilt) | ||||||
| 9 | Min aisle weight | mm | 3022/3105(tilt without pedal) | ||||||
| 10 | Min ground clearance | mm | 80 | ||||||
| Performance | 11 | Max travel speed | Load | km/h | 5 | ||||
| Unload | km/h | 5 | |||||||
| 12 | Max lifting speed | Load | m/s | 0.13 | |||||
| Unload | m/s | 0.23 | |||||||
| 13 | Max falling speed | Load | m/s | 0.13 | |||||
| Unload | m/s | 0.23 | |||||||
| 14 | Gradient | Load | % | 5 | |||||
| Unload | % | 7 | |||||||
| Size | 15 | Overall length | mm | 2852/2941( tilt) | |||||
| 17 | Body length | mm | 1782/1871 (tilt) | ||||||
| 18 | Body width | mm | 1015 | ||||||
| 19 | Body height | mm | 780 | ||||||
| 21 | Max mast height | mm | 2600 | 3500 | 4000 | 4300 | 4600 | ||
| 22 | Static height | mm | 2000 | 1800 | 2030 | 2130 | 2330 | ||
| Wheel | 23 | Tyre type(front/rear) | PU | ||||||
| 24 | Wheel num | 1 driving wheel+2 load wheels | |||||||
| 25 | Wheelbase | mm | 1529(1639 tilt) | ||||||
| Brake | 26 | Turning type | electromagnetic | ||||||
| Motor | 27 | Travel motor | KW | AC 1.5 | |||||
| 28 | Lifting motor | KW | DC 3 | ||||||
| Battery | 29 | Voltage | V | 24 | |||||
| 30 | Capacity | Ah | 270 | ||||||
| Controller | 31 | Brand/Model/Standard | CURTIS/1230/200A | ||||||
Shanghai Cheuk's Logistics Technology Co., Ltd.,which is subordinate to Cheuksgroup, is specializing in the developing, manufacturing and marketing of logistics, lifting and hydraulic machinery. We have abundant product line, forklift truck, pallet truck, stacker, table lift, tail gate, tow trackor, aerial work platform,plastic hand truck, hydraulic tools
and so on.
Our sales and network covers all over the world, also R&D center in Germany and America. We keep a really good relationship with our abroad partners. We based in China, supply you with our standard products of reliable quality, reasonable price. Also,the OEM service is available according to your requirements. Give us an opportunity, we will "Lifting your future"!
