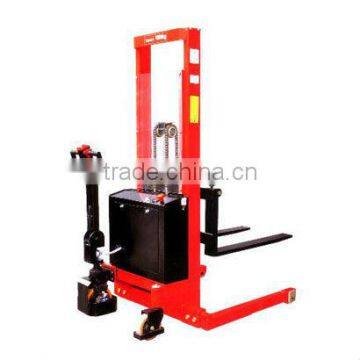

Straddle Power Stacker CLJ Series

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shanghai, China
Brand Name	Cheuk's	Model Number	CLJ
Type	Other, Stacker	Power Souce	AC Motor
Rated Loading Capacity	1T	Max. Lifting Height	3000mm
Min. Lifting Height	85mm	Fork Length	1150mm
Fork Width	100	Overall Dimensions	Pls check
Certification	CE/ISO9001	After-sales Service Provided	No overseas service provided

The specification of Straddle Power Stacker CLJ Series

Characteris tics	1.1	Model	unit	CLJ 1016	CLJ 1025	CLJ 1030	CLJ 1016-A	CLJ 1025-A
	1.2	Drive		Accumulator
	1.3	Type of operation		pedestrian
	1.4	Rated capacity	Q(t)	1000
	1.5	Load center distance	C mm	600			400
Weight	2.1	Overall weight	Kg	463	530	554	445	527
Wheels	3.1	Tyre material		Polyurethane
	3.2	Tyre size(front)	mm	100
	3.3	Tyre size(rear)	mm	180
	3.4	Additional wheels(dimensions)	mm	220
	3.5	Wheel number(front/rear)(x=driven wheels)		1x+2/1
Dimensions	4.1	Lifting height	h3(mm)	1600	2500	3000	1600	2500
	4.2	Lowed height	h13(mm)	30
	4.3	Overall length	l1(mm)	1859			1600
	4.4	Rear body width	b1(mm)	873			1080-1360
	4.5	Fork size	s/e/l(mm)	1150×160×56
	4.6	Width over forks	b5(mm)	540			210/800
	4.7	Width over forks	Wa(mm)	1440			1600
Performance	5.1	Travel speed laden/unladen	km/h	6.0/7.5			2.5/3.0
	5.2	Lift speed laden/unladen	mm/s	85/120			70/70
	5.3	Lowering speed laden/unladen	mm/s	100/69			100/100
	5.4	Max gradient performance laden/unladen	%	5/7
	5.5	Brake		electromagnetic
Motor	6.1	Drive motor power	kw	0.75			0.4
	6.2	Lift motor power	kw	2			1.6
	6.3	Accumulator voltage/rated capacity	V/Ah	24/100			12/80×2
Other	7.1	Type of drive control		MOSFET Control
