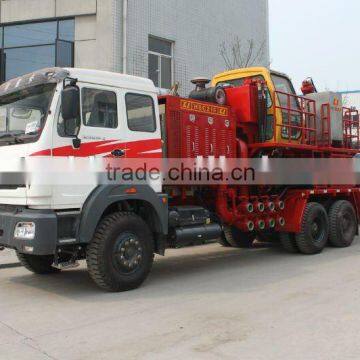

75 barral sand blender
- SHANGHAI
You May Like
Product Details
| Place of Origin | Hubei, China | Brand Name | Petrokh | |
| Model Number | HSC75 |
Product Description
Specifications
used for fracturing and acidizing operations, with high pressure and large displacement.A HS75 sand blender is a widely used blender with stable performance and high blending capability, and can provide sand fluid enough for several fracturing packages. It is fully hydraulically driven. Four sets of oil pumps are powered by the deck engine through a transfer case, and then hydraulic motors driven by the four oil pumps will perform relevant work: including sand feeding, agitating, blending, dry additive operation,suction and discharge pump operation.
1.It is a unitized equipment for heavy duty fracturing Operations. Full hydraulic driving. The power of operating parts comes from deck and chassis engine, and installed power is up to 500HP.
2. High displacement: one blender is enough for heavy duty fracturing operation.
3.It can be equipped with many automatic control system, including liquid level control, density control, liquid additive control, dry additive control and discharge control system. Data acquisition, feedback and programmable control operations can all easily be realized.
Main Parameters
Model | HS75 |
Max displacement of sand pump bbl(m3/min) (Water) | 75(12) |
Max. working pressure psi(MPa) | 70(0.5) |
Max feeding capacity of sand feeder ppm(kg/min) | 16440(7456) |
Displacement of three liquid additive systems gpm(L/min) | 10(37.8) 53(200) 90(340) |
Displacement of dry additive system gpm(L/min) | 27(102) |
Volume of blending tank bbl(m3) | 9.4(1.5) |
Overall dimensions in.(mm) | 419×99×166(10634×2500×4205) |
Total weight lb(kg) | 55115(25000) |
