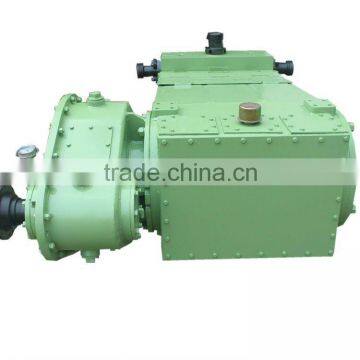

600HP Triplex Plunger Pump 3ZB-450

Type:

3ZB-448

Rated Power(kw):

448

Stroke (mm/in)

152.4 (6’’)

Gear ratio:

4.61:1

Legth(mm) x width(mm) x height(mm):

1292x1366x820

Weight(kg):

2155

     plunger diameter (mm/in)

 max pressure  (Mpa)

      max displacement(L/min)

76.2(3’’)

97.6

938

88.9(3-1/2’’)

71.7

1276

101.6(4’’)

54.9

1667

114.3(4-1/2’’)

43.4

2110

Displacement per Revolution

Displacement at Pump rpm-Well Service Application

50/230

120/552

200/920

300/1380

450/2070

 in

 gal/rev

gpm

psi

gpm

psi

gpm

psi

gpm

psi

gpm

psi

(mm)

(liter/rev)

(m3pm)

(Kg/cm2)

(m3pm)

(Kg/cm2)

(m3pm)

(Kg/cm2)

(m3pm)

(Kg/cm2)

(m3pm)

(Kg/cm2)

 2 1/2" (63.5)

.38(1.4)

19 (72)

 20,372 (1436)

46 (174)

20,165 (1421)

76 (290)

12,099 (835)

115 (434)

8,066 (568)

172 (651)

5,377 (379)

 2 3/4" (69.9)

.46(1.8)

23 (87)

16,836 (1186)

56 (210)

16,665 (1174)

93 (350)

9,999 (705)

139 (526)

6,666 (470)

208 (788)

4,444 (313)

 3" (76.2)

.55(2.1)

28 (104)

14,147 (997)

66 (250)

14,003 (987)

110 (417)

8,402 (592)

165 (625)

5,601 (395)

248 (938)

3,734 (263)

 3 1/2" (88.9)

.75(2.8)

37 (142)

10,394 (732)

90 (341)

10,288 (725)

150 (568)

6,173 (435)

225 (851)

4,115 (290)

337 (1277)

2,744 (193)

 4" (101.6)

.98(3.7)

49 (185)

7,958 (561)

118 (445)

7,877 (555)

196 (741)

4,726 (333)

294 (1112)

3,151 (222)

441 (1668)

2,100 (148)

 4 1/2" (114.3)

1.24(4.7)

62 (235)

6,288 (443)

149 (563)

6,224 (439)

248 (938)

3,734 (263)

372 (1407)

2,489 (175)

558 (2111)

1,660 (117)

Input Power(Kw)

253(188)

600(448)

600(448)

600(448)

600(448)
