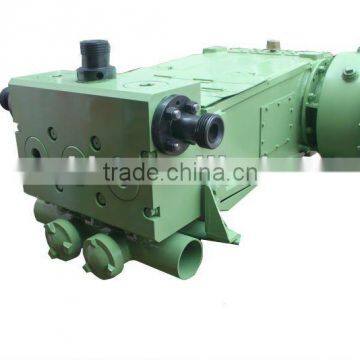

TWS600 triplex plunger pump (long)
- Shang Hai
You May Like
Product Details
| Place of Origin | Hubei, China | Brand Name | ZHONGYOU KEHAO | |
| Model Number | TWS600s | Theory | Reciprocating Pump | |
| Structure | Piston Pump | Usage | Oil | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Other, oilfield |
Product Description
Specifications
1. it is used for single pump single engine cementing unit2. triplex plunger pump
Briefly Introduction
600 pump is a reciprocating, positive displacement, horizontal single-acting, triplex plunger pump which is rated at 600 Brake Horsepower input maximum. The pump is designed for intermittent duty well service applications such as acidizing,cementing, fracturing, well killing, gravel packing, etc.
Outer Demension
Length 50.25” (1276mm)
Width 52.93” (1344mm)
Height 23.88” (607mm)
Net weight (about) (2086kg)
1. Power end
Max. load (kg) (43,360kg)
Max. input power (KW) 447
Max. rotating speed of pinion shaft 1416r/min
Gear transmission ratio 4.61
2.Fluid end
Max. water power(KW) 447(600hp)
Stroke (mm) 152(6”)
KH600S pump consists of a Power End/Speed Reducer Assembly and a Fluid End Assembly
Performance data
Dia., plunger | Output RPM | Pump SPM / Displacement at corresponding RPM of pinion gear | |||||||||
50/230 | 120/552 | 200/920 | 300/1380 | 450/2070 | |||||||
Inch (mm) | G/R (L/M) | G/M (L/M) | PSI (Kg/cm2) | G/M (L/M) | PSI (Kg/cm2) | G/M (L/M) | PSI (Kg/cm2) | G/M (L/M) | PSI (Kg/cm2) | G/M (L/M) | PSI (Kg/cm2) |
2 1/2” (63.5) | .38 (1.4) | 19 (72) | 20,372 (1436) | 46 (174) | 20,165 (1421) | 76 (290) | 12,099 (835) | 115 (434) | 8,066 (568) | 172 (651) | 5,377 (379) |
2 3/4” (69.9) | .46 (1.8) | 23 (87) | 16,836 (1186) | 56 (210) | 16,665 (1174) | 93 (350) | 9,999 (705) | 139 (526) | 6,666 (470) | 208 (788) | 4,444 (313) |
3” (76.2) | .55 (2.1) | 28 (104) | 14,147 (997) | 66 (250) | 14,003 (987) | 110 (417) | 8,402 (592) | 165 (625) | 5,601 (395) | 248 (938) | 3,734 (263) |
(
