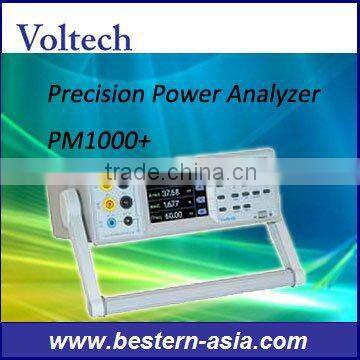

PM1000+(Voltech) Precision Power Analyzer

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Hongkong

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	United Kingdom	Brand Name	Voltech
Model Number	PM1000+	Measuring Current Range	0~20Arms & +/-100A Peak Direct Input
Measuring Voltage Range	0~600Vrms & +/-1500V Peak Direct Input	Accuracy Class	0.1% basic accuracy
Operating Temperature	-10~60degC	Dimensions	350340160mm

Product Description

Specifications

1. Voltech PM1000+ Precision Power Analyzer
2. Original PM1000+ x 12pcs Exstock
3. Free PC Software
4. Overloads up to 5kV

Voltech Power Analyzer and Transformer tester:

PM300
PM1000+
PM3000ACE
PM6000-1
PM6000-2
PM6000-3
PM6000-4
PM6000-5
PM6000-6
ATI

AT3600

High accuracy, low cost next generation power analyzer.

Direct connection – no CT errors.

Accurate up to Crest Factors of 20 – no compromise specification of distorted waveforms.

Rugged analog design - stands overloads up to 5kV.

Discrete Fourier Transform provides harmonics more accurately than FFT.

Voltech proprietary frequency detection avoids problems with zero-crossing detection.

Built with low power standby in mind - no special accessories or channels required.

High sample rate captures all the data and avoids aliasing problems.

Full color clear and versatile display with customizable graphing and measurement selection.

Great interfacing USB, IEEE, RS232.

Specification

VOLTAGE	RANGES Frequency Range Peak Continuous Peak < 1 second Input Impedance Display Crest Factor	900, 215, 46, 10 Vpk 10Hz to 1MHz 1500 Vpk (over voltage) 5000 Vpk (over voltage) 1 MΩ 4.5 Digits 20 (Peak / RMS)
RMS 45-65Hz	Accuracy	0.05% of rdg +0.05% of range
RMS	Accuracy	0/1% of rdg + 0.1% of range + 4mV + (0.02 * F)% of rdg
DC	Accuracy	0.1% of rdg + 0.4% of range + 5mV
VOLTAGE +/- PEAK	Accuracy	0.5% of rdg + 0.5% of range + (0.02 * F)% of rdg
CURRENT	RANGES Frequency range Peak Continuous Peak < 1 second Input resistance Crest Factor	100, 25, 6.25, 1.6, 0.4, 0.1 Apk 10Hz to 1MHz 20Arms 60Arms (over current) 12.5mΩ 20 (Peak/RMS)
RMS 45-65Hz	Accuracy	0.1% of rdg +0.1% of range
RMS	Accuracy	0.1% of rdg + 0.1% of range + 1mA + (0.02 * F)% of rdg
DC	Accuracy	0.1% of rdg + 0.4% of range + 1mA
CURRENT +/- PEAK	Accuracy	0.5% of rdg + 0.5% of range + (0.02 * F)% of rdg
WATTS	RANGES Frequency range	1W to 90kW 10Hz to 1MHz
RMS 45-65Hz	Accuracy	[{(Verror/Vreading) +(Aerror/Areading)}*Wreading + 0.1% of W reading
	Accuracy	0.2% rdg + 0.1% range + 4mW + ((0.05/PF) * F)% of rdg
VA	RANGES Frequency range Accuracy	1VA to 90kVA 10Hz to 1MHz 0.2% rdg + 0.1 % of range +4mVA + (0.05 * F)% of rdg
VAr	RANGES Frequency range Accuracy	1VAr to 90kVAr 10Hz to 1MHz 0.2% rdg + 0.1% range + 4mVAr +((0.05/1-PF) * F)% of rdg
POWER FACTOR	Power Factor Range Accuracy	-1.000 to +1.000 +/-0.002 +/- ((0.001/PF) * F)
FREQUENCY	RANGE Accuracy	DC and 10Hz to 1MHz 0.1%
VOLTAGE CREST FACTOR	RANGE Accuracy	1.00 to 20.0 %Vpk error + % Vrms error
CURRENT CREST FACTOR	RANGE Accuracy	1.00 to 20.0 %Apk error + % Arms error
PEAK INRUSH CURRENT	RANGE Accuracy	100Apk 2% of range +/- 20mA
HARMONIC ANAYLSIS	Number of Voltage & Current Harmonics Maximum Harmonics Frequency Accuracy Frequency Range	50 450kHz 0.2% of Reading + 0.1% of range +0.04% per kHz of Harmonics 10Hz to 450kHz
THD Total Harmonic Distortion	Range & Accuracy Formula	Range 0-999% Accuracy 0.4% + (0.1 * F)% of reading Series or difference
STANDBY POWER	Time Window Resolution	1-300 sec 1 second
IMPEDANCE	Range Accuracy	0.005Ω to 1MΩ 0.2% of Reading +0.1% of range +5mΩ + ((0.05/PF) * F)% of reading
RESISTANCE	Range Accuracy	0.005Ω to 1MΩ 0.2% of Reading + 0.1% of range +5mΩ + ((0.05/1-PF) * F)% of reading
REACTANCE	Range Accuracy	0.005Ω to 1MΩ 0.2% of reading + 0.1% of range +5mΩ + ((0.05/PF) * F)% of reading
EXTERNAL SHUNT Scaling	Input Range	+/- 1250 mVpk 0.0001 to 100000
MECHANICAL		1/2 rack size. Rack height 85mm W = 224mm. Height including feet 103mm D = 285mm. Weight 3.21Kg (7lbs.)
