Home > Products > Vicor Power Supplies > Vicor 100W 24V DC-DC Converters V110C24C100BG

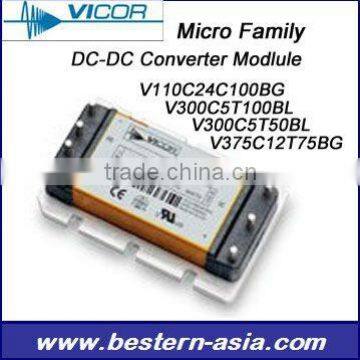

Vicor 100W 24V DC-DC Converters V110C24C100BG
- Hongkong
- Credit Card
You May Like
Product Details
| Place of Origin | United States | Brand Name | Vicor | |
| Model Number | V110C24C100BG | Output Power | 51 - 100W | |
| Output Type | Single | Input Voltage | Other, 110Vdc | |
| Output Voltage | 24Vdc | Output Frequency | 50/60HZ | |
| Output Current | 4.2A |
Product Description
Specifications
1.Vicor 100W 24V DC-DC Converters V110C24C100BG2. Programmable output: 10 to 110%
3. Safty Approval: UL, TUV, CE
4. ROHS
Vicor 100W 24V DC-DC Converters V110C24C100BG
These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency ZCS/ZVS switching provides high power density with low noise and high efficiency.
Features:
1. DC input range: 66 – 154 V (continuous)
2. Encapsulated circuitry for shock and vibration resistance
3. Extended temperature range (–55 to +100°C)
4. Input surge withstand: 250 V for 100 ms
5. DC output: 3.3 – 48 V
6. Programmable output: 10 to 110%
7. Regulation: ±0.3% no load to full load
8. Efficiency: Up to 87%
9 .Maximum operating temp: 100°C, full load
10. Power density: up to 60 W per cubic inch
11. Height above board: 0.43 in. (10,9 mm)
12. Parallelable, with N+M fault tolerance
13.Low noise ZCS/ZVS architecture
Applications
1. Railway/Transportation system
2. Communications systems
3. Information display
4. Lighting
5. Control systems
6. Ticket machines
7. Passenger entertainment
8. Public address systems
9. Door control
10. Industrial power systems
11. Power generation systems.
Ordering Information:
Hotsell:
| V24A24T400BL3 |
| V100A28E400BL |
| V110B24T200BL |
| V110C12C100BG |
| V110C12C100BL |
| V110C12E100BL |
| V110C24C100BG |
| V110C24C100BL |
| V110C24E100BL |
| V110C3V3C50BL |
| V110C5C75BG |
| V110C5E75BL |
| V150A15C400BL |
| V150A5C400BL |
| V150B12C250BL |
| V150C15C150BL |
| V150C5C100BL |
| V24A24E400BL |
| V24B28T200BL |
| V24C12C100B |
| V24C12M100B |
| V24C12T100BL2 |
| V24C12T50BL |
| V24C3V3T75BG |
| V24C5C100AL |
| V24C5C50BL2 |
| V24C5T100BL |
| V24C5T50BL |
| V24C8T100BG |
| V28A24C200BL |
| V28A28C200BL |
| V28A48C200BL |
| V28C12M100BG |
| V28C15M100BL |
| V28C24T100BL |
| V28C5M50BL |
| V300A48C500BG |
| V300A48C500BL |
| V300A5C400BN |
| V300B28T250BL |
| V300B36C250B |
| V300B36T250BL |
| V300B8C200BL |
| V300C12E150BL |
| V300C12T75BL |
| V300C15T150BL |
| V300C15T75BL |
| V300C24C150BL |
| V300C24E150BL |
| V300C24T75BL |
| V300C28M150BL |
| V300C28T150BL |
| V300C48C100BL |
| V300C5C50BL |
| V300C5E100BL |
| V300C5T100BL |
| V300C5T50BL |
| V300C8C100BL |
| V357C28T300BG |
| V375A24C600BL |
| V375A28C600BL |
| V375A48C600BL |
| V375B5C200BL |
| V375C12T150BL |
| V375C12T75BG |
| V375C15T100BG |
| V375C15T75BG |
| V375C24T75BN |
| V375C3V3T50BL |
| V375C5T100BG |
| V48A15E500BG |
| V48A48C500BL |
| V48C12C150B |
| V48C5T100B |
| V72A24C400BL |
| V72C15E150BL |
| V72C24C150BG |
| V72C24C150BL |
